Aerox 4110-200 Oxygen Cylinders

From $1895.00 to $1998.00
Prices below incude GST
Model No. Height Diameter Weight Capacity (Oxygen) Part Number Price Buy
4110-200-119.6”5.1"4.0 Lbs Max22.8 scf
13-17963
$2084.50
Quantity
4110-200-224.8”6.7”7.9 Lbs Max50.1 scf
13-17964
$2084.50
Quantity
4110-200-329.4”7.5”11.8 Lbs Max77.1 scf
13-17965
$2084.50
Quantity
4110-200-431.3”9.017.9 Lbs115.7 scf
13-17966
$2197.80
Quantity
4110-200-520.2”6.7”6.4 Lbs Max39 scf
13-17967
$2197.80
Quantity
Subtotal $0.00
Add to Wishlist

Overview

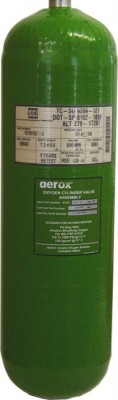

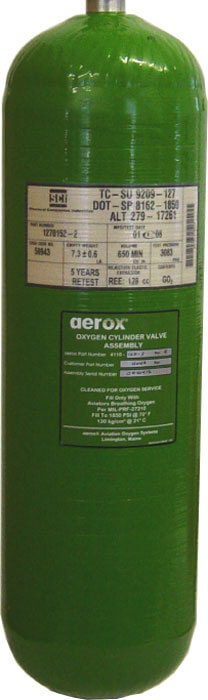

Kevlar Composite Fiber Wrapped Aluminum Lined Cylinder per DOT-SP 8162.

Cylinders are cleaned for oxygen service.

Listed Cylinders are PMA’d for installation in Aircraft listed in PQ2091NE Supplements 4 & 5.

Features

  • Note: Cylinders are cleaned for oxygen service.
  • Maintenance: Cylinder: 5 year Hydro-Static Test. 15 year service life.

Specifications

  • Thread: 3/4-16 UNF

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these come with a new Hydro test or do they need an initial Hydro?

Per Vendor: "they will not need a new Hydro."
