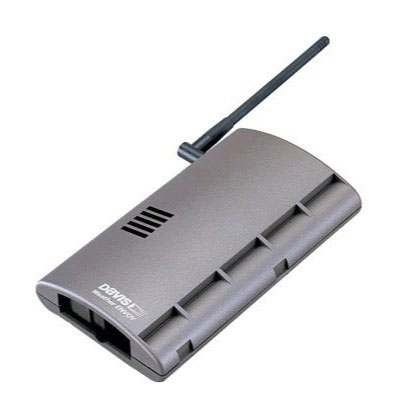

Davis Instruments Weather Envoy

0 Reviews 0 Answered Questions
Select Model:
Cabled Wireless
Price Includes GST
Quantity
Add to Wishlist

Overview

The Wireless Weather Envoy (# 6316) and Cabled Weather Envoy (# 6316C) provide a quick and easy way to get weather data onto your Windows® or Macintosh® computer using WeatherLink® software.

Weather Envoy includes sensors to measure inside temperature, inside humidity, and barometric pressure. It is intended to be used in conjunction with our Integrated Sensor Suite (ISS) to report outside temperature and humidity, rainfall, wind speed and direction. Using optional sensors, the Weather Envoy can also report solar and UV radiation.(For outdoor sensor specifications, see the specification sheets for the system or sensor.)

In the wireless version only, you may connect an external temperature probe (6475 or 6477) to replace the Weather Envoy’s internal temperature sensor. The Wireless Weather Envoy can also be used in conjunction with our Wireless Temperature, Wireless Temperature and Humidity, and Wireless Leaf and Soil Moisture/Temperature stations. All wireless products communicate via FCC-certified, license-free transmitters and receivers.

The Cabled Weather Envoy is connected directly to the ISS via a cable and cannot be used with any other sensor stations and cannot be used with the Vantage Pro2 console.

Weather Envoy is powered by an included AC-power adapter with three AA battery backup. (Lithium batteries are recommended in low temperature applications.)

Please refer to the Wireless or Cabled Vantage Pro2 Weather Station Spec Sheets for detailed information on the Vantage Pro2 ISS data.

Features

  • Accurate, reliable weather monitoring with real-time data updates every 2.5 seconds.
  • Industry-leading transmission range of 1,000’/300 m from the sensor suite to the console.
  • Sensor suite’s rugged, weather-proof housing gives you years of reliable data.
  • Sensor suite includes outside temperature and humidity sensors in a passive radiation shield; wind speed and direction; and rainfall.
  • Mount anemometer up to 40’/12 m from the rest of sensor suite for flexible siting.
  • Includes WeatherLink Console (6313) with the vibrant, HD color touchscreen.
  • Sensor suite is solar-powered with battery back-up; console is AC-powered with battery backup.
