Piper PA28 Glare Shield
MFR Model# ADS-PG001
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|

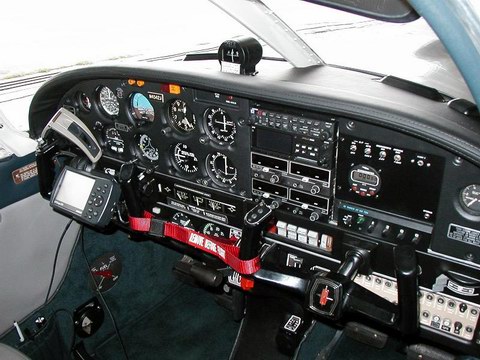

Glareshields are designed for the Piper model PA28 and is made of FAA approved temperature stable Lexan covered with sound proofing foam and a non-glare vinyl that looks like leather. With a 3 inch eyebrow over the instrument panel, it not only adds beauty to your plane but also improves forward visibility. The Glareshield is easy to install and comes with all hardware and detailed instructions.
Aircraft Eligibility: On this standard PA-28 glare shield the distance between the defroster holes is approximately 20 inches from center to center and has the SCAT defroster hose application. The standard models would include: most PA-28 aircraft made before 1974. This glare shield WILL NOT fit late model PA 28-161, PA 28-181 or other Piper aircraft that have the newer type of defroster distribution ducting/system. Typically these models were built in 1978 or later. In the later model PA 28, the defroster holes are much further apart (approximately 22 ¾”) and do not have Scat hose but a fiberglass distribution system. If one is not sure, they can measure the distance between the defroster holes before ordering to determine if the glare shield will fit. |
Documents
Reviews
Don’t know yet
Verified Purchase
Glareshield Piper PA28 Before 1974
Very well made. Dont assume 1973 & earlier models is enough to order. You MUST measure beneath OEM glareshield sheet metal. SCAT hoses on firewall insufficient measurement. Awkward but will save you expensive shipping charges
Beautiful covering. Needed to be trimmed to fit. The round vent opening needed to be modified to match the rectangular one.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: They are not FAA Approved but the glareshield will ship with a sample form 337 that can be used to help obtain an FAA field approval.
This will not fit a PA28 with the radio hump.
