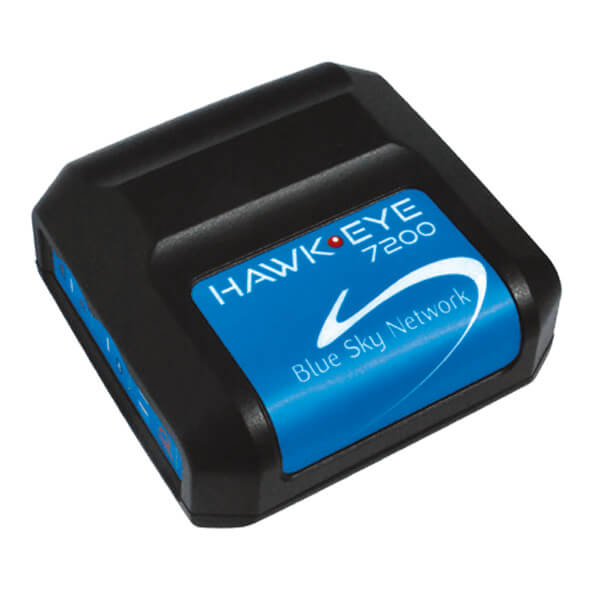

Hawkeye 7200 GPS Tracking Device
$1384.90/Each
Price Includes GST
Part# 11-15236
MFR Model# HE-7200KT
MFR Model# HE-7200KT
Overview
|
The portable HawkEye 7200 (HE7200) is packed with advanced features that make it the perfect Iridium SATCOM solution for on-the-go global asset tracking and communication even from your iPhone or iPad with built-in Bluetooth. Fly with it, take it with you in your vehicle, or jump on-board your ship; the HE7200 is the perfect portable companion for pinpoint tracking, reliable communication and maximum personal security. A true multi-national GNSS receiver plus Iridium give the HawkEye 7200 (HE7200) a definitive edge in TTFF (time to first fix) and global positioning accuracy. A built-in GNSS chip tracks GPS / GLONASS / GNSS satellites and multiple SBAS systems simultaneously to generate the fastest, most accurate position reports in the industry. The HawkEye 7200 (HE7200) portable communication device includes a long-life lithium battery (up to 1200 positioning reports), a built-in dual Iridium/GNSS antenna, wireless Bluetooth, and the power of Blue Sky Network’s global asset management system, SkyRouter. True Global Coverage The Iridium global network of 66 low-earth-orbit (LEO) satellites offer faster connection times and true global coverage, so you know where your important assets are all of the time. Faster, More Accurate Positioning Reports The HawkEye 7200 (HE7200) offers concurrent satellite communication with 3 global satellite positioning (GNSS) systems, providing faster, more accurate positioning reports QPOS Button Send messages back and forth from HQ, even where there is no cellular coverage. Quick Position Button With a single press of the Quick Position Button (QPOS), you can quickly send an alert and position report to your contact list through SkyRouter.. SkyRouter Command Center The HawkEye 7200 (HE7200) communicates directly to SkyRouter, Blue Sky Network’s web portal—where you can track, update, communicate and manage all your assets. Nothing Extra to Carry Just grab and go. No external antennas or power supply required. Simple button push turns unit on and immediately connects with Iridium and GNSS satellite networks. |
Features
- Global Iridium tracking and communication of aircraft, vehicles, vessels, people
- Portable, self-contained small-format device, ready for grab-and-go applications
- Two-way messaging over Bluetooth

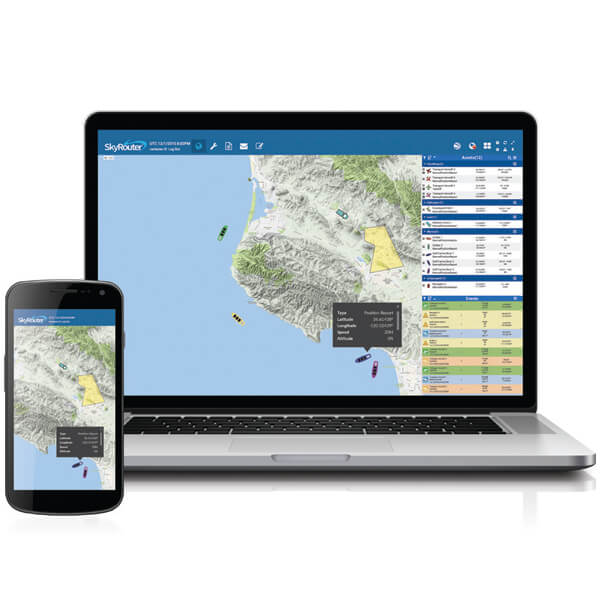

- Broadcasts directly to Blue Sky Network’s cloud-based web portal, SkyRouter
- Concurrent search and detection of multi-national GNSS and SBAS systems
- Ultra-accurate positioning and fast communication
- Quick Position (QPOS) button
- 3D motion sensor
- Remote over-the-air parameter configuration from SkyRouter to in-field devices
- Advanced geo-fencing, including device-side geo-fence detection
- Support for EFB (Electronic Flight Bag)
- Rechargeable long-life lithium ion battery
- I/O ports (RS232, digtial I/O, analog)
Specifications
- Internal Iridium Satellite Modem: 9602
- Concurrent GNSS: US NAVSTAR, GPS, GLONASS
- Supported SBAS: WAAS EGNOS QZSS MSAS GAGAN
- RS232 (RX/TX only): 1
- Accelerometer: 3D
- Included Antenna: Internal Iridium and GNSS dual channel
- Internal Battery: Lithium-Ion
- Operating Temperature: -20°C to 60°C
Service Plans
Click Here For information on Service PlansThe HawkEye 7200 (HE7200) requires an Iridium data service plan.
