MYGOFLIGHT Sport ™ Mount Flex Yoke Beech Center Collar

5 Reviews 2 Answered Questions
$185.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 13-19512
MFR Model# MNT-1827

Overview

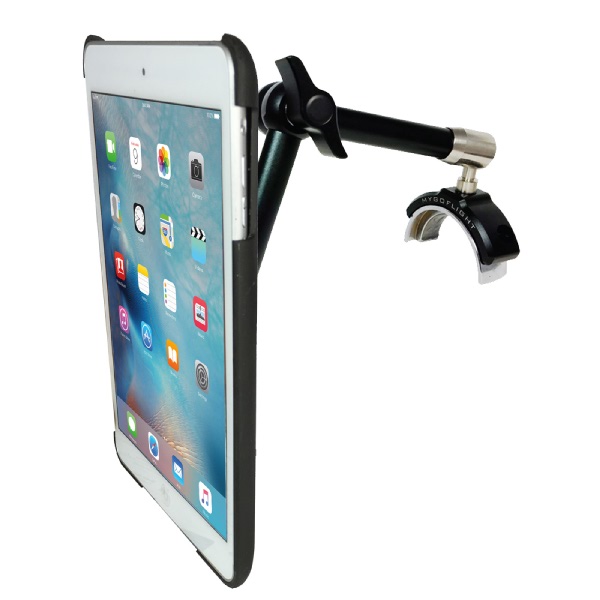

The Sport™ Mount - Flex Yoke Beech Center Collar - an INFINITELY articulating and adjustable arm with the ability to hold any iPad or other device. There is no other suction cup mount for an iPad/Device that does all that this unit does in a single, light-weight, easy to configure mount.

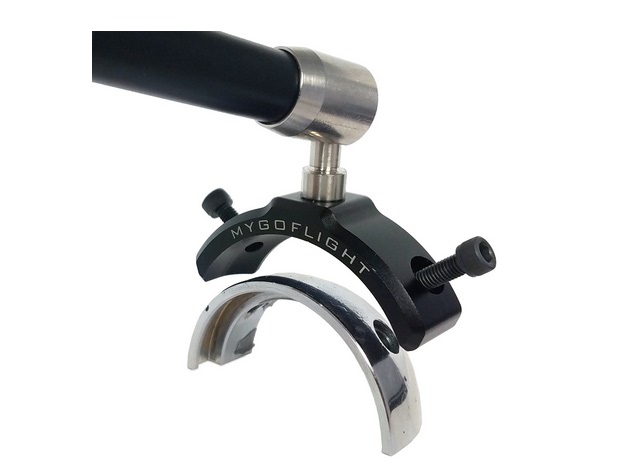

The Beech Center Collar mount attaches to the retaining clamp (Silver Metal Piece) on the center yolk arm. The way it attaches is by removing the screws that hold the retaining clamp on, putting our mount on top of the retaining clamp, and then securing it with the same screws.

    NOTE: You must have a Device Holder to use this mount

Features

  • Sport Mount - Flex Yoke Beech Center Collar can be installed by any pilot in any Beechcraft aircraft
  • Ball and socket ends and a ratcheting center provide infinite adjustment to height and position
  • Rotate device between landscape and portrait positions in-flight when mounted

Specifications

  • Beech Center Collar Base Material - Aicraft grade aluminum
  • Flex Arm Material - Aicraft grade aluminum
  • Sport Adapter Material - Aicraft grade aluminum

Position

  • Remove the screws from the yoke collar retaining clamp. Place mount onto column and secure with screws.
  • Attach the Device Holder(Sold Separately) to the Sport Adapter
  • Loosen the control knob, position the iPad/Device
  • Fine tune iPad/Tablet positioning, tighten control knob

Construction

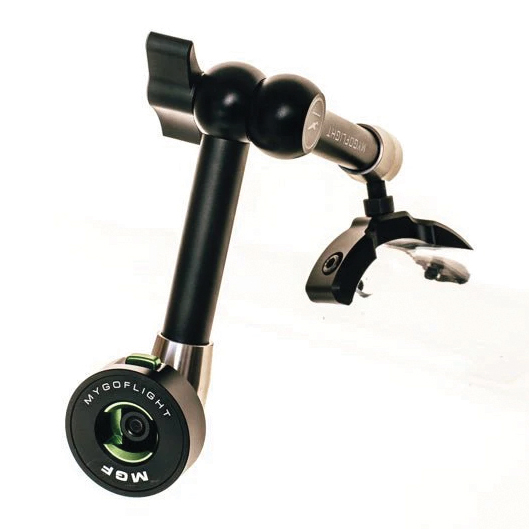

  • The arm is comprised of three independent joints, all adjustable and lockable from a single, centrally located control knob
  • The center joint is adjustable to 360° and the two end joints are mini ball heads that are adjustable to 105°
  • The suction cup attachment joint is a lockable socket which rotates 220°
  • The control knob allows partial loosening for safe and precise device positioning

In The Box

  • Beech Center Collar Base
  • Flex Arm (Max. Extension - 10.5"
  • Min. Extension - 3.25")
  • Generation 3 Sport Adapter
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Easy to install, does require two new screws not included. Range of articulation impressive.

Michael D Verified Purchase

MyGoFlight Sport Mount - Flex Yoke Beech Center Collar
December 8, 2021

Very well built with high end material. Easy to use and works as advertised. You will need to obtain after market screws to secure this to a beech yoke, factory screws are to short.

Mark K Verified Purchase

MyGoFlight Sport Mount - Flex Yoke Beech Center Collar
July 27, 2021

This is a quality made product! It holds my mini IPad in a very secure way and is highly adjustable. I would recommend it to anyone that wants to hold any small device secure while in the cockpit of a Bonanza.

Robert K
February 22, 2021

Quality is Excellent. Unfortunately doesn’t fit center collar Beech with gust lock tab that protrudes from dash at top (older model Beeches). Contacted MGF customer service and was told that they would have a solution by the end of June 2019. Excellent customer service!

A2b A
June 18, 2019

Well built product. Functions well. Did notice a small bit of vibration in the large pad while on the ground. Don’t recall seeing any in the air. Needs longer screws. Install is easy enough in theory, but a touch aggregating in reality with the short screws. If you don’t get longer screws, skip the washers and hold your mouth right while you tighten one side enough to hold, but not so much as to cause the screw on the opposite side to not be able to start. A 5 minute job turned into significantly longer than that due to the screw length.

Brian H Verified Purchase

MyGoFlight Sport Mount - Flex Yoke Beech Center Collar
September 20, 2023

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I already have a good iPad cradle (X-Naut). Is there an adaptor to mount that cradle on this arm? It currently is mounted with a RAM ball adapter.

Yes, this can be used with the Xnaut cooling cradles. You will need the Part # 13-19526 (MGF SPORT - GPS ADAPTER) to pair the Xnaut with this MGF FLex Yoke Beech mount.

Q: What king of device holders does this handle ... i have a ram does that work

No, this works with the MGF Sport Case. See Part# 13-19539 for example.
