Home / Rotax Engines & Parts / Parts / Two Stroke Parts / Accessories / Gearbox /Rotax 503 | 582 | Ul Engine Reduction Gearbox E : I=2 62 I=3 00 I=3 47 Or I=4 00 Parts
Main Image

Rotax 503 | 582 | Ul Engine Reduction Gearbox E : I=2 62 I=3 00 I=3 47 Or I=4 00 Parts

0 Reviews 0 Answered Questions
From $0.27 to $775.00
Prices below incude GST

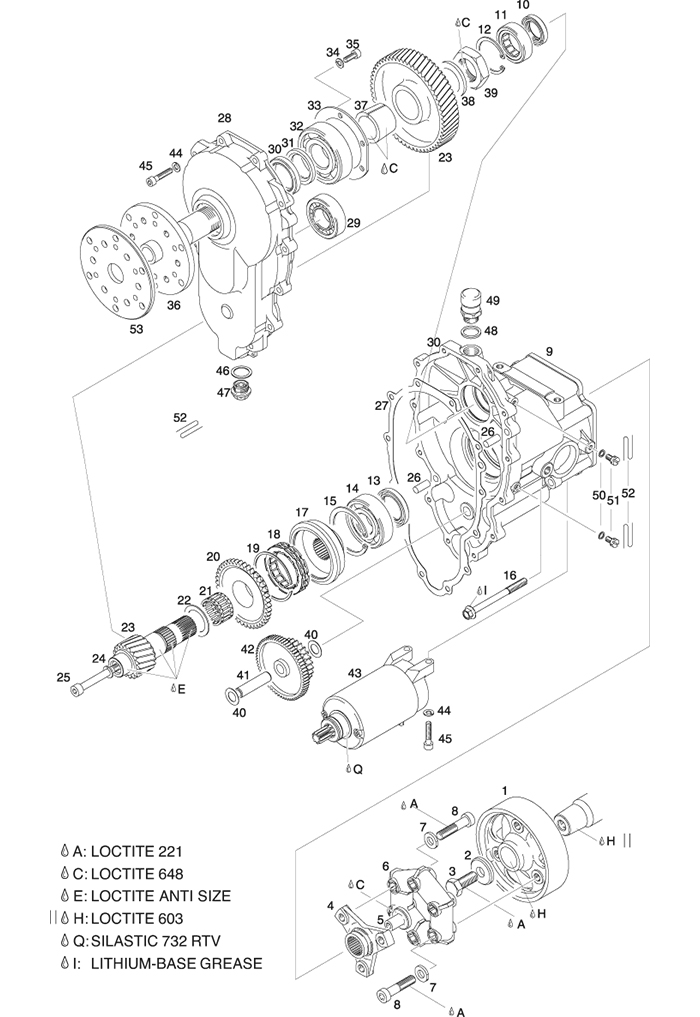

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty 582 Mod. 99 PN Price Buy
3841-651 HEX. SCREW 1/2-2OUNFX1 3/161
15-01199
$5.14
Quantity
12945-690 RETAINING RING 47X1,751
15-03355
$2.64
Quantity
15445-070 RETAINING RING 62X21
15-00565
$3.38
Quantity
17852-430 SPRAG CLUTCH HOUSING1
15-01596
$268.62
Quantity
21832-410 NEEDLE CAGE K 28X34X20H1
15-00985
$45.93
Quantity
22427-236 THRUST WASHER 28,25/39,8/1,51
15-00520
$2.45
Quantity
23886-751 GEAR SET I 2,621ah
15-02351
$818.40
Quantity
23886-753 GEAR SET I 3,0 1bh
15-02353
$818.40
Quantity
26929-940PIN 8X202
15-03023
$2.84
Quantity
28810-361 GEAR COVER1
15-00710
$852.50
Quantity
33944-106 SHIM1
15-03316
$20.88
Quantity
34445-330 LOCK WASHER VHZ 66
15-00566
$0.30
Quantity
35241-236 ALLEN SCREW M6X16
15-00169
$0.46
Quantity
38926-200 MASSIVE WASHER 301
15-02974
$7.10
Quantity
40227-450 THRUST WASHER 12,5/21,5/0,52
15-00044
$2.17
Quantity
41837-301 IDLE GEAR SHAFT1
15-01068
$55.17
Quantity
42834-290 IDLE GEAR 62/25 Z1
15-01025
$266.37
Quantity
46552-280 GASKET RING 18,2/24/11
15-00572
$1.88
Quantity
53944-140 COVER WASHER1
15-03320
$55.72
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   replace layshaft gear 55 T and pinion shaft 21 T only together.
  • b   replace layshaft gear 57 T and pinion shaft 19 T only together.
  • c   replace layshaft gear 59 T and pinion shaft 17 T only together.
  • d   replace layshaft gear 60 T and pinion shaft 15 T only together.
  • e   NOTICE left-hand thread.
  • f    coupling flange 958-971 and sealing ring 950-084 has to be used as a set.
  • g   coupling flange 958-970 and sealing ring 950-085 has to be used as a set.
  • h   gear set and splitted cone sleeve 847-757 has to be used together!
         NOTE: Included starter relay. see also SI-2ST-007


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
447
503
582
m90
582
m99
618
Price
13
950-084
 OIL SEAL 32X47X7
1f
1f
1f
1f
$71.56
