Home / Rotax Engines & Parts / Parts / 912/914 Series / Radiators /Rotax 912 | 914 Ul Oil Radiator Parts
Main Image

Rotax 912 | 914 Ul Oil Radiator Parts

0 Reviews 0 Answered Questions
From $53.60 to $93.25
Prices below incude GST
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty 912 UL Part Number Price Buy
6956-580BENT SOCKET ASSEMBLYAR
15-10085
$98.73
Quantity
7924-585ANGULAR TUBE M14X1.5AR
15-02960
$58.96
Quantity
2,3,9956-645SCREW CONNECTION SET UNF(1)
15-03581
$102.58
Quantity
Subtotal $0.00
Add to Wishlist

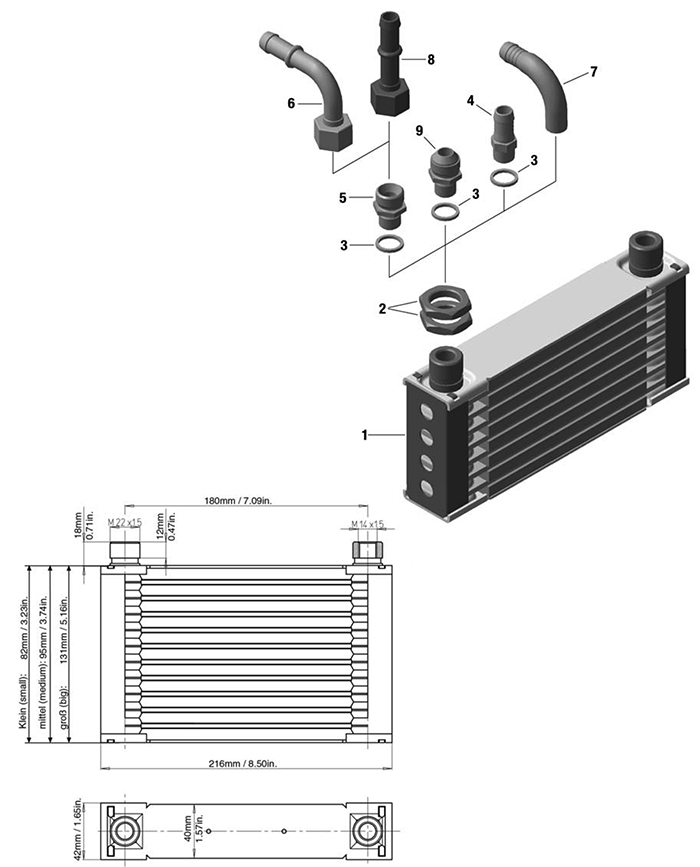

Overview

- Items not illustrated
  • a   Cooling area 125 cm² / 19.38 sq in
  • b   Cooling area 142 cm² / 22 sq in
  • c   Cooling area 234 cm² / 36.27 sq in
  • d   Metric connections
  • e   UNF connections


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
914 UL
Price
1 - 4
886-033
 OIL RADIATOR-SET
(1)b
(1)b
$214.00
1
886-033
 OIL RADIATOR
(1)a
$214.00
1

886-033
 OIL RADIATOR
(1)b
(1)b

$214.00
1

886-036
 OIL RADIATOR
(1)c
(1)c
(1)c
$229.00
4

840-461
 NIPPLE 13.2/9.5-M14X1.5 / TORQUE: 22 NM / 195 IN.LB.
(2)
(2)
(2)
*
6

956-580
 BENT SOCKET ASSY. / TORQUE: 25 NM / 18 FT.LB.
AR
AR
AR
*
