AN Bolt Selector

Price Includes GST
Quantity
Add to Wishlist

Overview

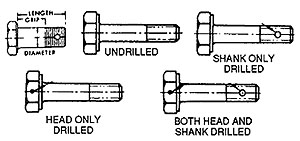

Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are center-less ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, & with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after dash number. For bolts with drilled head add letter "H" after AN number. See illustrated examples. The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN call-out.

Drawing

Reference Chart

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Positive

Mothcair A Verified Purchase

Bolt Undrilled AN3-5A

December 18, 2024

Positive

Mothcair A Verified Purchase

Bolt Undrilled AN3-6A

December 18, 2024

Positive

Mothcair A Verified Purchase

Bolt Undrilled AN3-6A

December 18, 2024

Positive

Mothcair A Verified Purchase

Bolt Undrilled AN3-6A

December 18, 2024

Positive

Mothcair A Verified Purchase

Bolt Undrilled AN3-11A

December 18, 2024

Excellent

Dave C Verified Purchase

Bolt Drilled AN6-11

December 18, 2024

Wally B Verified Purchase

Bolt Undrilled Stainless Steel AN4C-14A

December 17, 2024

It is an anchor bolt...works fine with a castle bolt to use cotter pins....not much else to say.

William Verified Purchase

Bolt Drilled AN3-12

December 14, 2024

As ordered

William S Verified Purchase

Bolt Drilled AN3-5

December 14, 2024

Kenneth L Verified Purchase

Bolt Undrilled AN3-40A

December 12, 2024

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the diameter tolerance on a 3/8-24 AN bolt?

The max is .374", and min .371"

Q: What is the safety wire diameter recommended for the drilled version?

It depends on the application, but both .032 and .041 will fit through the hole.

Q: On a drilled shank, where is the hole located in reference to the end?

Per the Tech Data Sheet, the hole location is determined from the start of the threads, on the head side, to the center of the drilled hole. AN3 = 17/64", AN4 = 5/16", AN5 = 23/64", AN6 = 7/16", AN7 = 31/64", AN8 = 39/64".

Q: What is the difference between stainless and cadmium plated AN bolts?

Stainless bolts are corrosion resistant for applications where corrosion is a problem. CAD plated bolts are made of steel with CAD plating to help surface corrosion, but it can been worn or chipped off.

Q: Is the nominal length listed the entire bolt (head, grip and thread) or just the grip and thread?

The nominal length is the length from under the head to the end of the shank.

Q: Picture clearly shows a bolt with both head drilled and shank drilled, but bolt selector does not allow that choice?

We do offer all of the types shown, but unfortunately not in every size. For example, drilled head is not available in AN4-3 stainless, but is available in AN5-4 cadmium.

Q: For the drilled shank, what is diameter of the drilled hole on AN3?

It is drilled for 1/16" cotter pin so it will be slightly larger than 1/16".

Q: what is the diameter of an4 bolt?

1/4

Q: How do you measure the grip length?

The grip length is the unthreaded portion on the bolt.
