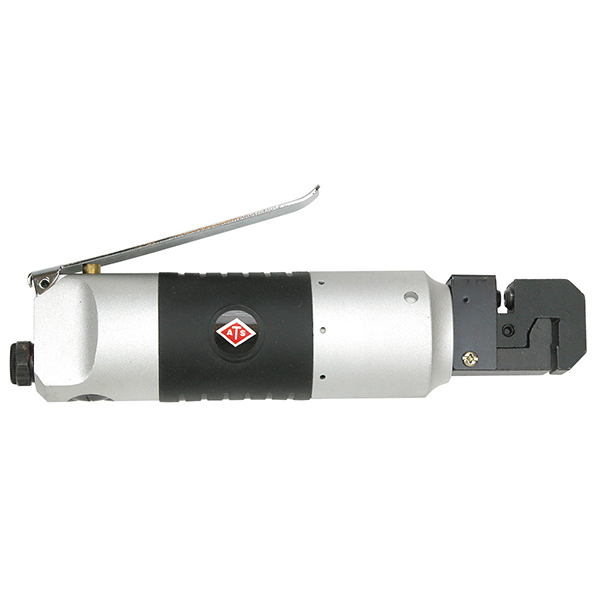

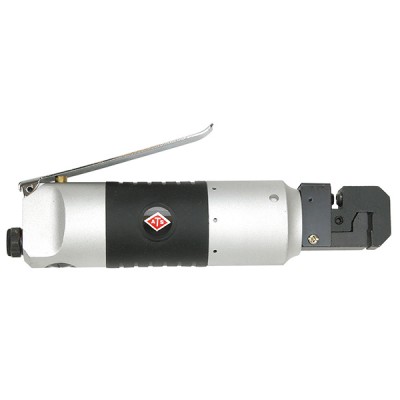

Punch And Flanging Tool

$92.39/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-01413
MFR Model# ATS8400

Overview

When overlapping two pieces of sheet metal, you must “jog” the edge of one sheet so that they will join together seamlessly - and that’s just what this tool does. The jogging die places a nice 1/2” jogging flange on the edge of sheet metal up to 16ga. While the other end of the die contains a hole punch that will make a clean 3/16” hole. This tool is a real time-saver if you do a lot of sheet metal work.

Specifications

  • Capacity 16ga (.060”/15mm) steel
  • Punch Diameter 3/16” (5 mm)
  • Flange width 1/2” (12 mm)
  • Rubber comfort grip
  • 9-3/4” (248 mm) Overall Length
  • 2.75 lbs (1.25 kg)

Reviews

I havent used this tool as yet. I am told it is mostly made in USA with one component made in Taiwan. So am looking forward to some quality.

John F Verified Purchase

ATS Punch & Flanging Tool

January 4, 2024
