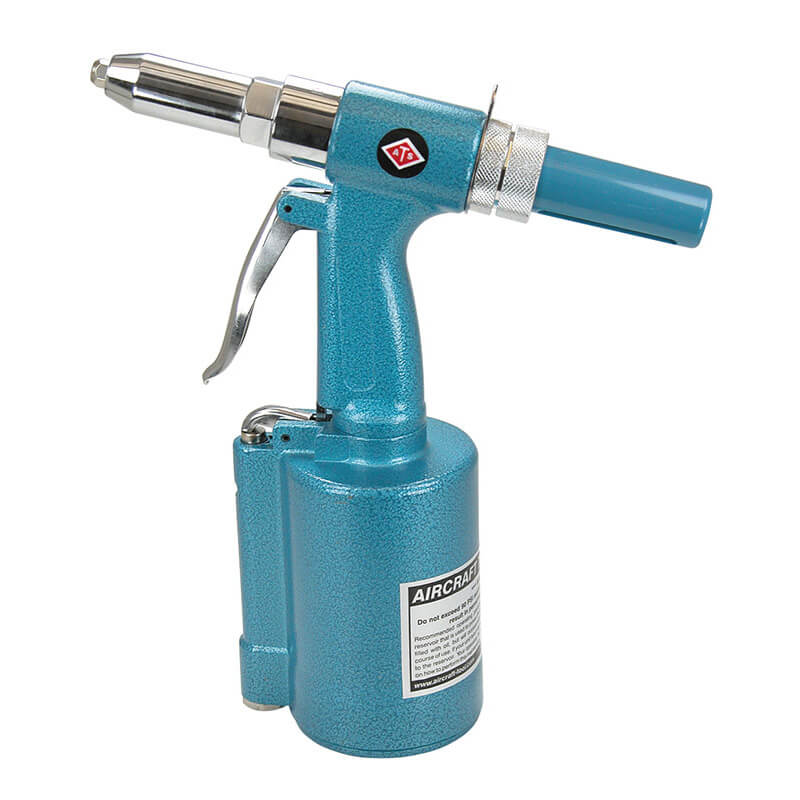

ATS Air Hydraulic Riveter
MFR Model# ATS8806
Overview
|
Compact Riveter is lightweight yet delivers a whopping 2,300 lbs of pulling force to effortlessly pull up to 3/16" (4.8mm) steel rivets. Comes complete with nosepieces for 3/32" 1/8", 5/32", and 3/16" rivets. Includes stem deflector for added safety. |
Specifications
- Pulling Force 2,300 lbs (1,045 Kg)
- Rivet Capacity 3/16" aluminum or mild steel
- Stroke Length .63" (16 mm)
- Nosepieces: 3/32" (2.4 mm), 1/8" (3.2 mm), 5/32" (4.0 mm), 3/16" (4.8 mm)
- Weight 3.26 lbs (1.48 kg)
Reviews
Excellent
Verified Purchase
ATS Air Hydraulic Riveter
I needed a replacement rivet puller and this one works great. Pulls with a slower pull than my previous air unit thus no slamming of the tool due to kick back. Also uses less pressure to pull rivets, about 2/3 of what previous puller needed.
Verified Purchase
ATS Air Hydraulic Riveter
Works great! I checked the hydraulic fluid level before operation and it at the proper level. Mind the psi limits on your compressor regulator. The stems fall forward onto the ground rather than in the hopper.
Verified Purchase
ATS Air Hydraulic Riveter
very useful tool
Verified Purchase
ATS Air Hydraulic Riveter
Very good gun for the price. It will not do the Cherry max rivets but for anything else its good. The only thing I wish that was on it was a swivel at the airline hookup.
Great tool! Much better that the Chinese knock-offs on Ebay or at discount tool guys. Should last a very long time. The body is also slimmer than the cheap pullers, which helps it fit in tight places like inside of control surfaces on RV kits.
The pneumatic riveter works well, and arrived quickly. thanks.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this unit (part number 12-01423) is not for use with CherryMax rivets.
Per the manufacturer: yes, and it required 70-80 PSI.
Yes, this will pull AVEX rivets.
Yes, please contact our sales department for a special order quote.
This is manufactured in Taiwan. Warranty is 1 year from date of receipt.
