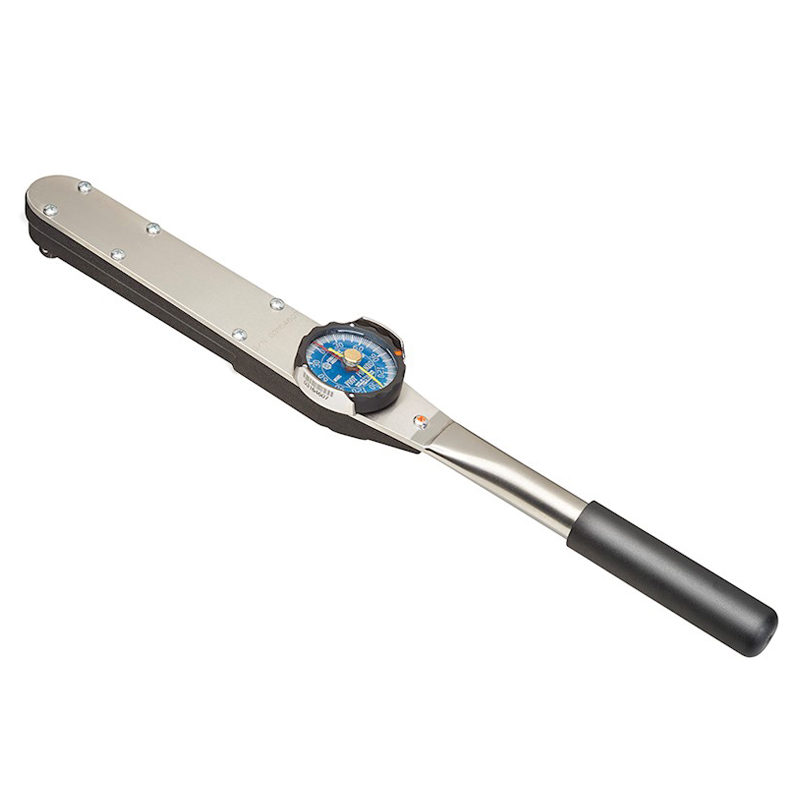

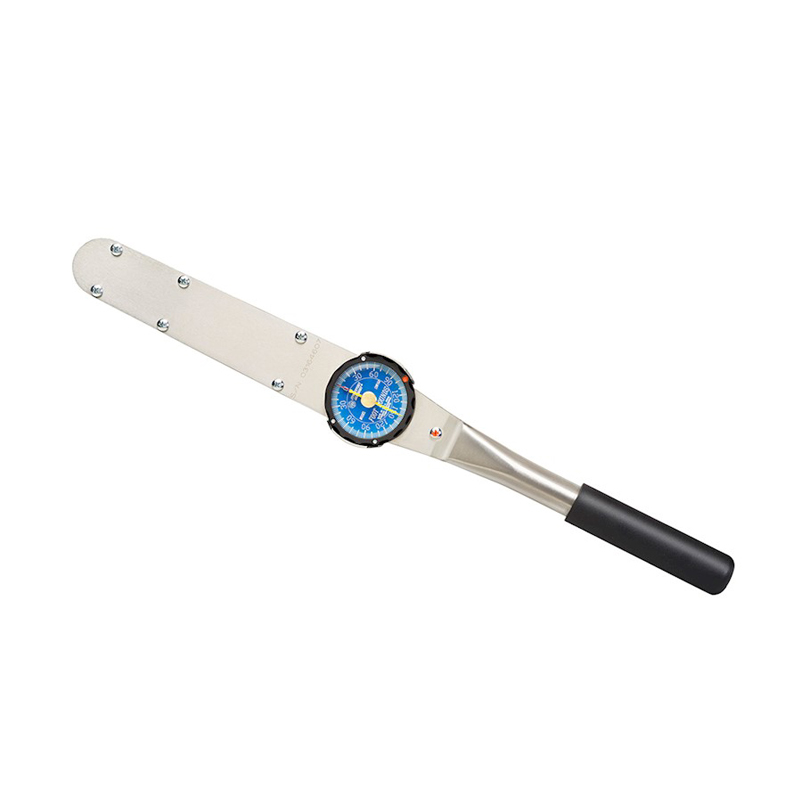

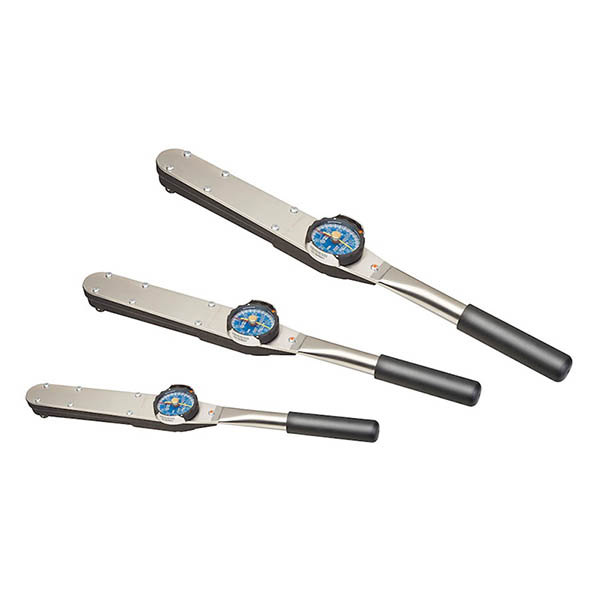

INDUSTRIAL DIAL (TORQUE) WRENCH

$412.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-05586
MFR Model# 815702

Overview

High-precision assembly operations, fastener testing (in-process/final/receiving) operations where prevailing-torque nuts are used, and auditing of fastener or assembly torque are all places where the new IDW Series will make a difference.
  • A visible reading of the torque is important
  • A retained measurement of the peak torque is required
  • The user can see the face of the tool when torque is being applied
  • Accuracy better than that of a clicker-type torque wrench is desired
  • The application is non-destructive
  • The rotation torque of an assembly is a specification

Features

  • An accuracy of +/- 3% Indicated Value from 20% to 100% of capacity.
  • Meets or exceeds ASME B107.300-2010 and ISO 6789.
  • Includes free Certificate of Calibration from our ISO 17025 Accredited Lab.
  • Error Proofing By Design: Oversized dial face is extremely easy to read and helps to eliminate parallax error.
  • A glare-resistant dial cover makes it easy to read in difficult light conditions.
  • Error Proofing By Design: A memory indicator is provided on each wrench and remains at the maximum torque achieved for positive torque verification.
  • Heavy-duty dial guard protects against breakage.
  • Dial faces are color-coded: silver for inch-pounds, gold for foot-pounds, and white for Newton meters.
  • Wrenches with a capacity of up to 50 ft-lbs have a black powder-coated handle that provides an industrial-strength finish.
  • Wrenches with a capacity of 175 to 250 ft-lbs have a flexible PVC handle. The flexible PVC grip that comes on tools up to 250 ft. lbs. supports proper grip and provides comfort during use.
  • Wrenches with a capacity of 600 to 1000 ft-lbs have a specially designed extension aluminum handle that is easy to grip.
  • Each wrench comes in its own rugged, blow-molded, storage case.
  • FREE NIST-traceable tabulated certification included.
