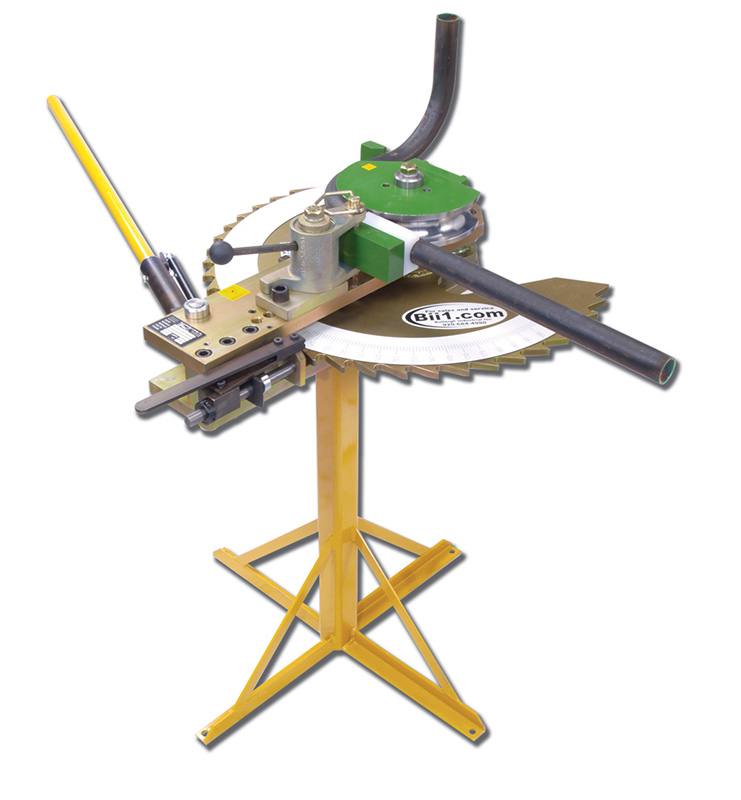

Baileigh Manual Tube Bender Rdb-100

0 Reviews 0 Answered Questions
$3452.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 13-08974
MFR Model# 1006773

Overview

This manual pipe bender is perfect for the industrial fabricator that needs to bend lower production runs with very professional looking bends. This manual bender It is heavily constructed of steel plate and ships mostly assembled with only the handle and stand needing to be attached. This bending machine can be fitted with hundreds of round and square tubing die sets as well as round pipe dies sets with a maximum center line radius up to 7”.

This manual tube bender uses a large diameter indexing plate that allows the fabricator to bend up to 206 degrees (180 degrees plus spring back) in one shot without having to re-index and re-pin common on most other manual pipe benders on the market. Each pull of the handle bends the material approximately 8 degrees. A tension spring back mechanism holds the position as the bend mechanism grabs the next tooth on the index wheel. When requirements are for lighter gauge materials this tube bending machines indexing unit can be shut off and the handle can be put into a manual override housing that allows the operator to simply walk around the manual bender and bend without the power of the indexing unit.

Thus, this manual pipe bender is very versatile and great for bending up to 1-3/4” OD tubing with a wall thickness of .095” and 1” schedule 40 pipe. The RDB-100 manual tube bender includes the stand, degree dial, and handle. A large degree dial displays your bend angle and all the tooling has a start of bend indicator line so complex bends can be made with ease. A quick release counter die system allows for quick loading and unloading of the material.

To complement this manual pipe bender for complex bends on varying planes, we offer accessories such as our plane of bend degree dial and bending software with layout capabilities during setup. Both of these items added to the manual bender, will save time and money. If you require further information regarding this manual bender rdb-100, contact a Baileigh representative. We carry this bending machine in stock for quick deliveries.

Specifications

  • Mild Steel Pipe (Schedule 40): 1"
  • Aluminum Pipe (Schedule 40): 1"
  • Stainless Steel Pipe (Schedule 40): .75"
  • Mild Steel Round Tube (Wall): 1-3/4" (.095)
  • Chromolly Round Tube (Wall): 1.5" (.083)
  • Mild Steel Solid Rod: 1"
  • Mild Steel Square Tube (Wall): 1" (.125)
  • Minimum OD: .25"
  • Maximum Speed to 180 Degrees: N/A
  • Maximum Center Line Radius (CLR): 7"
  • Minimum CLR: .5"
  • Power Requirements: N/A
  • Weight (Lbs.): 290
  • Length: 42"
  • Width: 22"
  • Height: 42"
