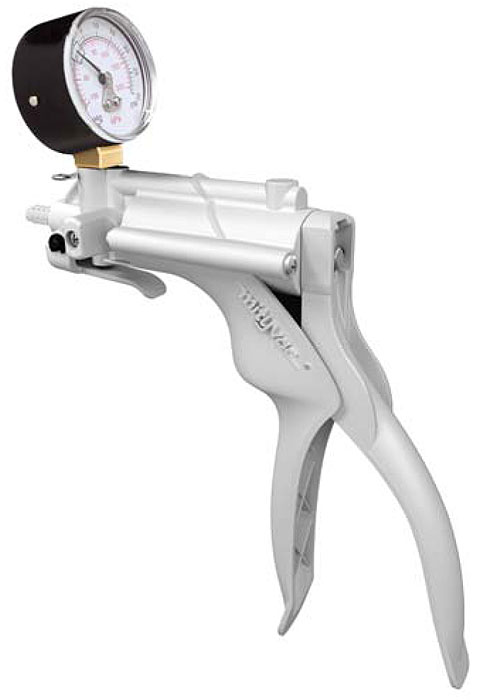

Selectline Hand Vacuum Pressure Pump With Gauge Dc
$87.95/Each
Price Includes GST
Part# 15-08423
MFR Model# MV8255
MFR Model# MV8255
Overview
|
Mityvac vacuum gauges are scaled 0 - 30 inches of Mercury (0 - 100 kPa). Compound gauges included on dual vacuum/pressure converter pumps are scaled 0 - 30 psi (0 - 200 kPa) pressure, and 0 - 30 inches of Mercury (0 - 100 kPa) vacuum.
All Mityvac pumps produce vacuum at the front port. Dual converter pumps are capable of producing vacuum or pressure at the front port. A rotating knob on the side of the pump allows the operator to switch between vacuum and pressure. Dual converter pumps include a compound gauge for indicating levels of both. All Mityvac pump vacuum/pressure ports fit standard 1/4" (6.4 mm) ID tubing |
Features
- Produces vacuum or pressure at the turn of a switch
- Comfortable ergonomic design
- One-finger trigger vacuum/pressure release
- Pressure and vacuum are created on the squeeze stroke for superior accuracy and control
- Includes durable, accurate gearless diaphragm style compound vacuum/pressure gauge with pinned connection for 360° rotation
Specifications
- Pump Displacement: 1 in3 (16cc) per stroke
- Max. Pressure 30 psi, 207 kPa
- Material: PVC
- Vol. per Stroke: 1 cu. in. / 16cc
- Gauge1: Yes
- Dual Converter2: Yes
- CE Certified: Yes
- Weight: 11.5 oz 326 g
- Country of Origin: China, Designed and quality controlled in the USA
Applications
- Vacuum & pressure related engine performance diagnostics and tune-ups
- Brake bleeding
- Fluid transfer, evacuation, and sampling
Documents
In The Box
- Mityvac Selectline hand vacuum/pressure pump w/2” (50mm) diameter gauge
- Service Sheet
