Overview

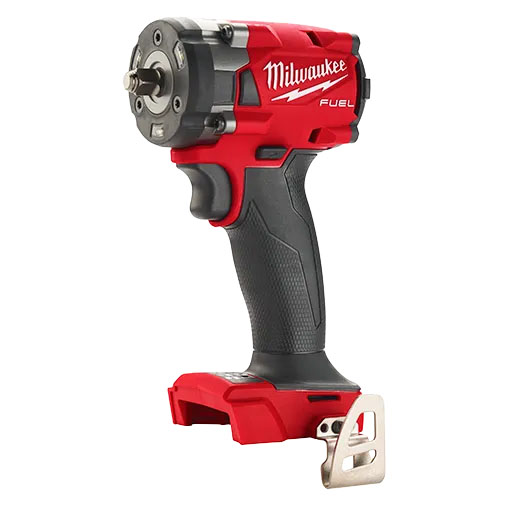

Our M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering you the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The MILWAUKEE® 3/8" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver you brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.

Features

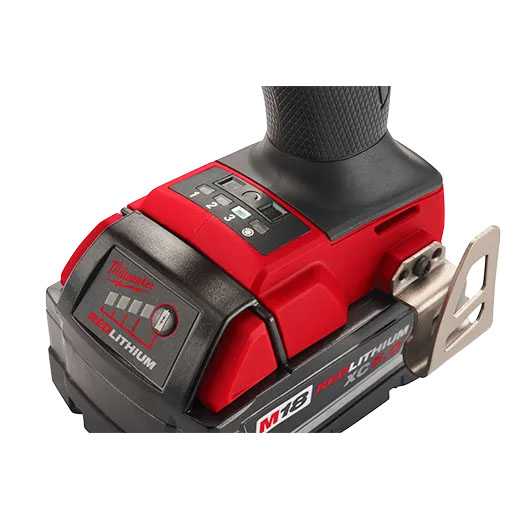

• 1 - REDLITHIUM™ Battery Pack: With the REDLITHIUM™ Battery Pack, Milwaukee M18™ power tools work like they should - faster, longer and with fewer recharges. The M18™ cordless power tools, maximizes performance, delivering more run-time, power and recharges than other lithium-ion battery packs.
•

• 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.
•

• 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

• Wrench Type: Compact
• Anvil Type: Friction Ring
• IPM: 0 - 3,500 ipm
• Maximum Torque: 250 ft/lbs
• Fastening Torque: 250 ft/lbs
• Nut-Busting Torque: 250 ft/lbs
• Tool Warranty: 5 Year Limited Warranty
• Power Source: Cordless
• Motor Type: POWERSTATE™ Brushless
• Material Composition: Aluminum
• Length: 4.8 in
• Weight: 3.9 lb
• Height: 7.95 in
• Width: 2.56 in
• Brushless: Yes
• Battery System: M18
• Chuck Type: Not Applicable
• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Chuck Size: Not Applicable
• Maximum RPM: 2400 rpm
• Peak Torque: 250 ft-lbs
• RPM Range: 0 - 2,400 rpm

Benefits

• 4.8" in length provides most access in tight spaces
• The POWERSTATE™ brushless motor delivers up to 250 ft-lbs. of nut-busting torque.

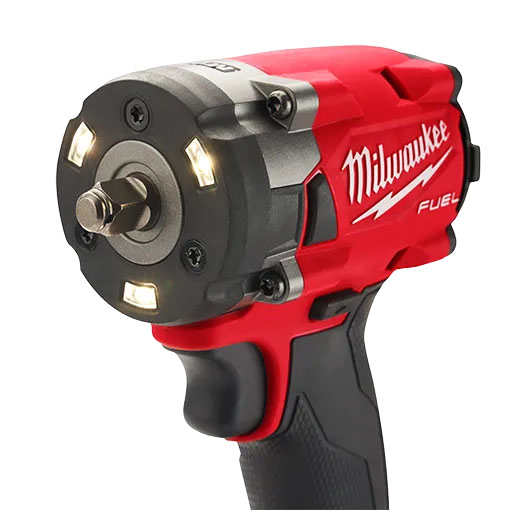

• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows.
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode.
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque.
• Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
• Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400 Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
• REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• Works in up to to 69kV environments
• Compatible with all M18™ batteries & Chargers

Documents

• Operator Manual (PDF)
• Service Parts List (PDF)

In The Box

• (1) M18 FUEL™ 3/8 " Compact Impact Wrench w/ Friction Ring Kit(2854-20)
