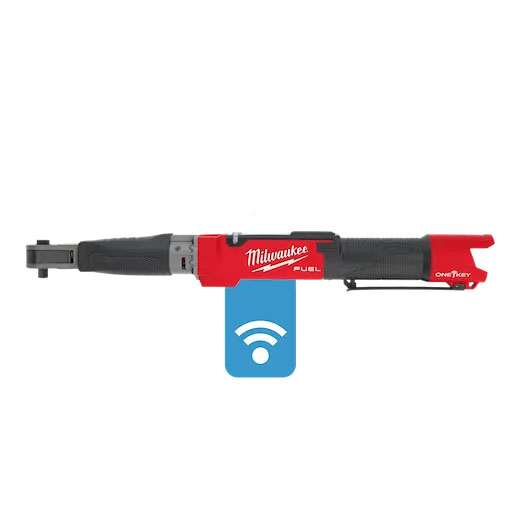

Milwaukee M12 Fuel™ 1/2 Inch Torque Wrench w/ ONE-KEY™

$768.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-05883
MFR Model# 2466-20

Overview

Our M12 FUEL™ 1/2” Digital Torque Wrench w/ ONE-KEY™ is the industry's first torque wrench with a motor, delivering increased productivity, precise torque accuracy, and user demanded reporting functionality.

The 1/2” torque wrench delivers 50% faster installation time, replacing the hand tool or two tool installation process and providing more control to reduce the over torquing of fasteners. The 1/2” digital torque wrench provides 12.5-150ft-lbs of torque range and accuracy within 2% for torque critical fasteners.

This battery powered torque wrench is equipped with Milwaukee ONE-KEY™ giving you the power to track, report, and manage your tool. This tool will record all of the fasteners that are saved and produce a downloadable report via ONE-KEY™ for the necessary parties requiring the data.

ONE-KEY™ allows you to wirelessly connect to a smartphone to customize the tool settings, track its location, manage inventory, and lock the tool out for added security and protection for your investment.



Features

  • 1 - REDLITHIUM™ Battery Pack: With the REDLITHIUM™ Battery Pack, Milwaukee M12™ power tools work like they should - faster, longer and with fewer recharges. The M12™ cordless power tools, maximizes performance, delivering more run-time, power and recharges than other lithium-ion battery packs.

  • 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.

  • 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

  • Wrench Type: Right Angle
  • Anvil Type: Ball Detent
  • Maximum Torque: 1200 in-lbs
  • Torque Range: 10 - 100 FT-LB
  • Head Profile: 0.375 in
  • Tool Warranty: 5 Year Limited Warranty
  • Power Source: Cordless
  • Motor Type: POWERSTATE Brushless
  • Material Composition: Aluminum
  • Length: 23.3 in
  • Weight: 5.1 lb
  • Height: 2.81 in
  • Width: 2.13 in
  • Brushless: Yes
  • Battery System: M12
  • Chuck Type: Not Applicable
  • Chuck Size: Not Applicable
  • DRIVE CONTROL: 1-Mode
  • Measuring Units: ft-lbs, in-lbs, Nm, kg-cm
  • Tool Accuracy: CW: +/-2% of Full Scale/ CCW: +/-3% of Full Scale (Range: 20% - 100% of Full Scale)
  • Minimum Arc Swing: 4.5°
  • Maximum RPM: 100 rpm
  • RPM Range: 0 - 100 RPM

Benefits

  • Delivers up to 50% Faster Installation by replacing the hand tool or two tool installation process with the POWERSTATE™ brushless motor and torque wrench in one tool
  • Precise Torque Accuracy of up to ±2% CW, ±3% CCW of full scale for torque critical fasteners
  • Faster, More Productive Torque Reporting w/ ONE-KEY™ providing torque data and customizable reports for inspectors or owners
  • ONE-KEY™ technology allows for customization, tracking, tool security, and inventory management
  • Adjustable run-down torque to control the tools output torque via the motor to prevent over torque
  • Four notification modes that the tool is reaching, meeting or exceeding the torque target (audible, LED, LCD, and vibratory) Four measurement modes (ft-lb, in-lb, Nm, Kgcm)
  • Six pre-programmed languages including English, Spanish and French Durable design to withstand the most demanding jobsite environments
  • Certificate of tool calibration is valid for 12 months from the date of first use
  • REDLINK PLUS™ Electronic Intelligence enables advanced communication between batteries and tools for unmatched performance, protection, and productivity.
  • REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery
  • Compatible with all M12™ batteries & chargers

In The Box

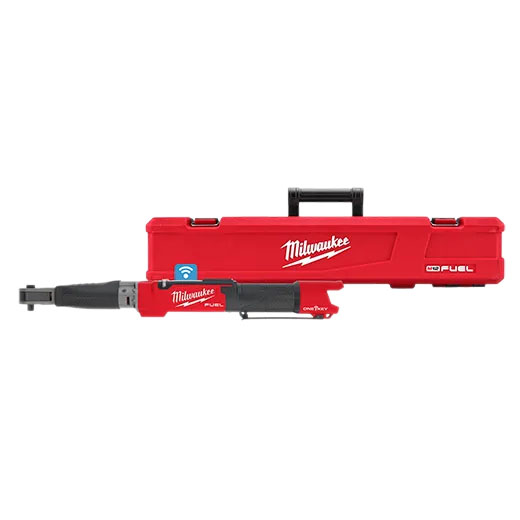

  • (1)Carrying Case
  • (1)Calibration Certificate
