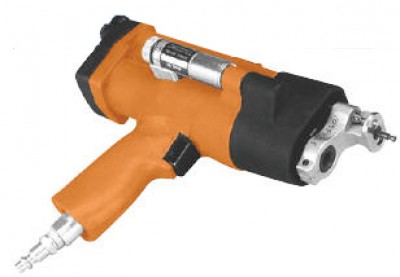

Ultralight Nutplate Drill Motor

$9370.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-01376

Overview

Ergonomic, lightweight design. Only one hand required to locate, drill & countersink both holes. Easily convert rivet spacings with interchangeable foot attachments. Available in single wing, double wing & mickey mouse models. Accomodates all nutplate spindle spacings from 0.219" to 1.125". Fully adjustable feed rate.

Price as depicted is for base model only. Options and selections on schematic worksheet will increase the cost.

Features

Stroke Length
Spindle Speed
Horsepower
Feed Rate Change
Collet Stroke Length
Weight
1/2"
600 or 7,000 RPM
0.54 HP
0.001" to 0.012" Per Revolution
1/4"
4.75 lbs.
(2.2 kgs)

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the Ultralight Nutplate Drill Motor: When adjusting feed rate, which way do you turn the knob? While holding the trigger in, do you adjust it while your holding the trigger or when you release it?

You will adjust it while the tool is out of operation. As for instructions on the knob adjustment, please see page 14 in the manual available in the 'Documents' tab.
