Tensitron Acx-Series Digital Aircraft Cable Tension Meter

From $1899.00 to $1999.00
Prices below incude GST
Description Cable Selection Resolution (Lb.) Range
(Lb.)
PN Price Buy
ACX-100-11/16, 3/32, 1/8, 5/32".21 - 100
12-03758
$2088.90
Quantity
ACX-250-11/16, 3/32, 1/8, 5/32, 3/16".21 - 250
12-03759
$2088.90
Quantity
ACX-250-FM-11/16, 3/32, 1/8, 5/32, 3/16".21 - 250
12-03766
$2161.50
Quantity
ACX-500-13/32, 1/8, 5/32, 3/16, 1/4".11 - 500
12-03762
$2088.90
Quantity
ACX-250-CWT-15, 10, 15, 20, 25 CWT.21 - 250
12-03763
$2088.90
Quantity
ACX-250-CMB-11/16, 3/32, 1/8, 5/32, 3/16".21 - 250
12-03764
$2198.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

KEEP AIRCRAFTS FLYING SAFELY

ACX-1 meters are the fastest, easiest way to verify accurate cable tension. Get your aircraft off the ground and into the air with maximum performance and safety and minimum cost and time. Ideal for aircraft cables or other stationary cables up to 1/4” diameter. Custom calibrations available for specialized applications

Attention: Tensitron products may not be cancelled or returned.

NOTE: If your ACX-1 Meter needs to be recalibrated, please fill out the information via this link HERE

Features

  • FAST - Quickly test cable tension
    • Quick, easy, one-handed operation
    • Color-bar graphic provides quick visual of tension levels
    • Compact design allows access to small spaces
  • ACCURATE - Improve aircraft safety and performance
    • Measures mm, inch, and CWT diameters
    • Tension ranges from .5 lb to 1200 lb.
    • Selectable units (lb., kg, or daN)
  • DEPENDABLE - Save time and costs with durable construction
    • Durable, reliable construction
    • Data storage and statistics
    • Includes carrying case and NIST-traceable calibration certificate
  • CONVENIENT - User-friendly and easy to transport
    • Lightweight, portable
    • Analog or serial output (optional)
    • Easy-to-read, backlit, digital display

Dimensions

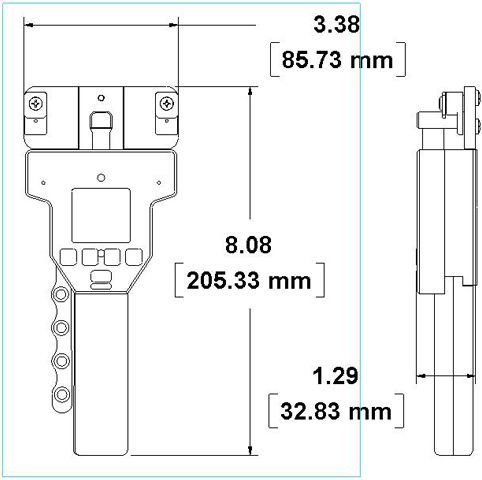

ACX-251-1
DIGITAL CABLE TENSION METER
(All Models: 100, 250, 250-M, CWT & CMB)

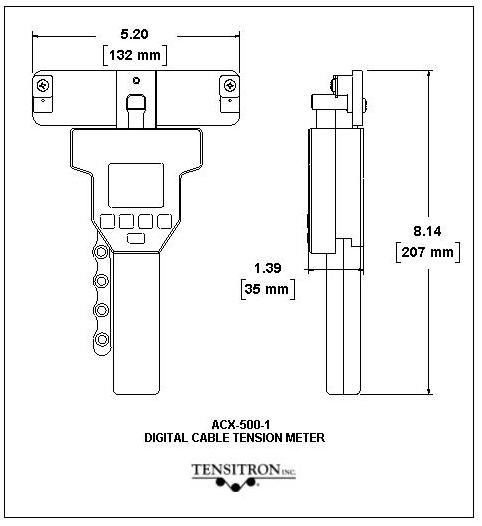

ACX-500-1
DIGITAL CABLE TENSION METER



Each meter comes with a Cable Diameter Gage

Benefits

  • ACCURACY: +/- 2% full-scale for all models except ACX-1200-SCB, which is +/- 3% full-scale.
  • BATTERY: NiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge.
  • WIDTH: Models with ranges up to 250 lb. are 3.4” wide. Meters with ranges above 250 lb. are 5.2” wide.
  • DATA OUTPUT: Analog Output (Option “A”) or RS-232 Serial Output (Option “E”) are available as add-on options.
  • WARRANTY: One year against factory defects
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

It was just what i needed very good quality,

Manuel M
February 24, 2020

Lightweight, gets into almost any tight spot, easy to use.

Henry B
January 10, 2020

Awesome little tool, very easy to use. Highly reccommend to all shops.

Ray
January 25, 2018

the battery is an issue, doesnt hold a charge

Advantage A
July 27, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of these Tensitron ACX-Series digital tensiometers?

We have added a "Dimensions" tab to the webpage. You can review them there. We have also added more detailed PDF dimenions which you can find in the "Documents" tab.

Q: Is this Tensitron ACX-Series comes calibrated? with a Certificate of calibration?

It does come with a certificate of calibration in the box.
