Vividia D3145 USB Digital One-Way Articulating Borescope
MFR Model# D3145
Overview
|

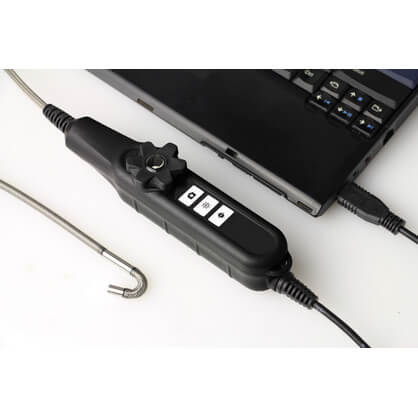

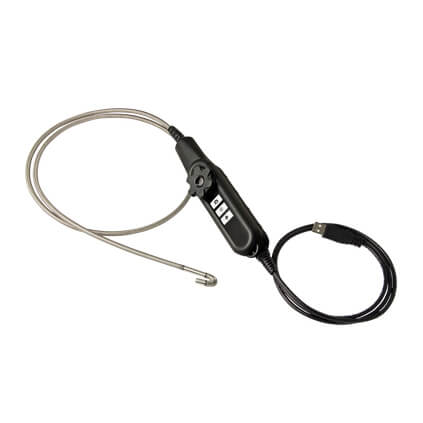

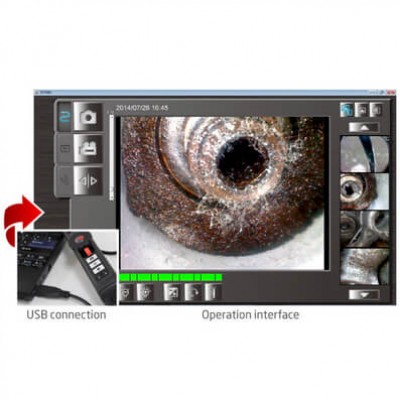

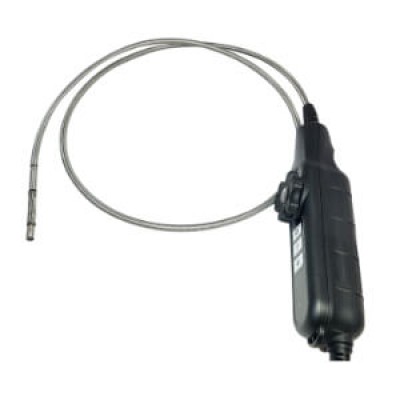

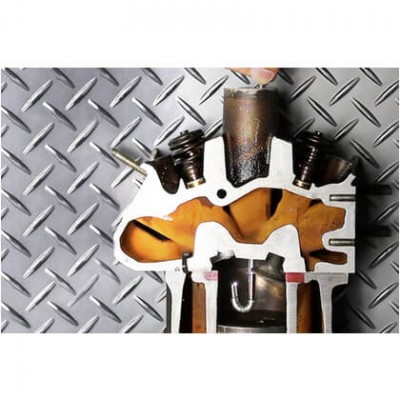

Vividia D3145 USB Digital One-Way Articulating Borescope has 4.5mm diameter camera probe and 1 meter long insertion tube. D3145 can only be bent in one direction, and the maximum bending angle is ~180 degree. The insertion tube has metal braided outside layers and the bending part is also made with stainless steel, which offers good abrasion resistance. With USB connection, one can connect Vividia D3145 Digital Borescope to a Windows PC (WIndows XP, 7, 8 and 10), MacBook, android devices. With additional Vividia VA-B2 AirBox wireless converter and "AirBox-Vividia Ablescope", D3145 can be used with iPhone and iPad. End users can easily take pictures and videos with free software. The LED brightness can be adjusted. Vividia D3145 Articulating Borescope are an ideal tool for automotive, airplane, aviation, manufacturing, and instrument inspections. Vividia D3145 USB Digital One-Way Articulating Borescope has 4.5mm diameter camera probe and 1 meter long insertion tube. D3145 can only be bended in one direction, and the maximum bending angle is ~180 degree. The insertion tube has metal braided outside layers and the bending part is also made with stainless steel, which offers good abrasion resistance. With USB connection, one can connect Vividia D3145 Digital Borescope to a Windows PC (WIndows XP, 7, 8 and 10), MacBook, android devices. With VA-B2 AirBox wifi wireless converter and our "AirBox" app from Google Play Store or Apple App Store, one can use own iPhone/iPad or Android device with Vividia D3145 USB articulating borescope. |
Specifications

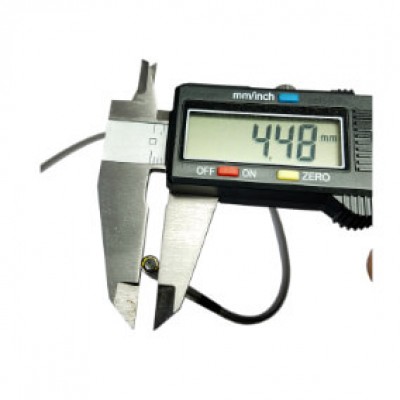

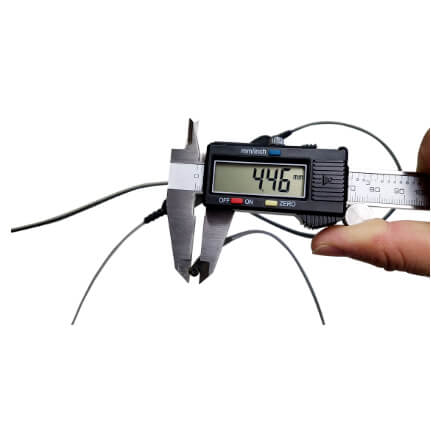

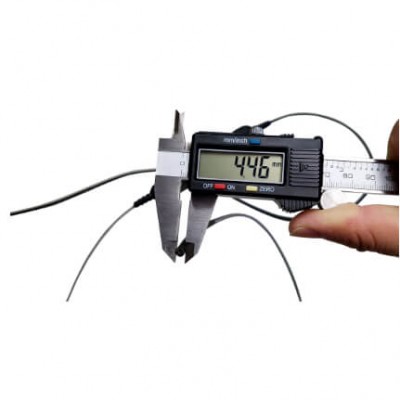

- Camera probe diameter: 4.5mm
- Insertion tube length: 1 meter (3 feet)

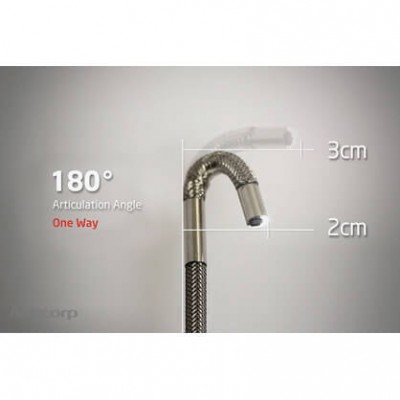

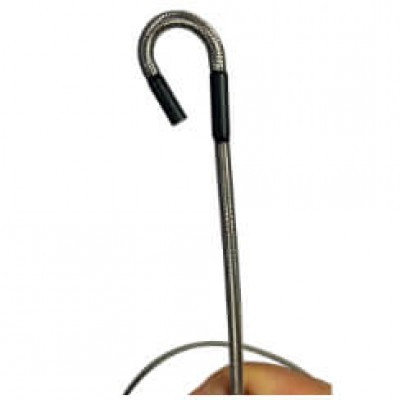

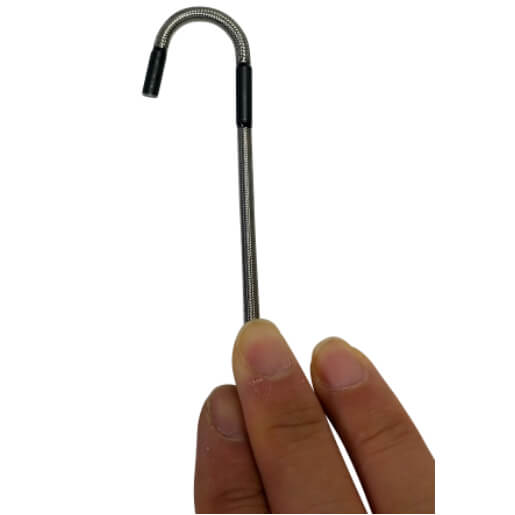

- Articulation angle: one-way 0 to 180º manual
- Probe head material: stainless steel
- Insertion tube material: outer braided stainless steel
- Light source: Front white LEDs
- FOV: 87º
- DOF: 4mm~60mm
- Bottons: boost, image rotations
- Sensor Resolution: 640x480
- Video format: AVI
- Photo format: jpg
- USB Interface: USB2.0
- Compatible systems: Windows XP, 7/8/10; Mac OS / Android; iOS through WiFi
- Working temperature: -10ºC ~ 60ºC
- Storage temperature -10ºC ~ 60ºC
Videos
Reviews
Great borescope for the price. Able to connect to a tablet and phone.
Verified Purchase
Vividia D3145 USB Digital One-Way Articulating Borescope
