Fafnir Bearing Mb540Ddfs464

$48.02/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 04-00374
MFR Model# MB540DDFS464

Overview

Dimensions



Specifications

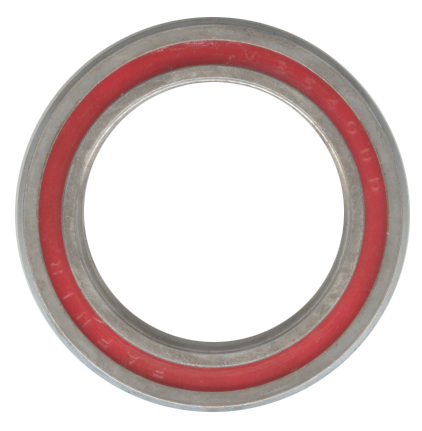

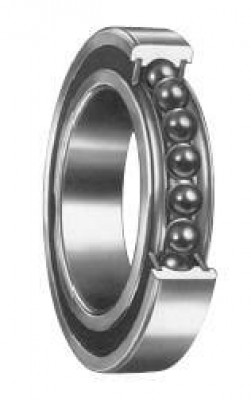

Fafnir Bearing MB540DDFS464

MS21428 • SAE-AS7949
  • Extra light duty
  • Single row, ball, torque tube type
  • PTFE seals
  • Exposed surfaces except bore and seals are cadmium plated
  • Prelubricated for life
  • This series is dimensionally interchangeable with the unsealed MB500 series
  • Also offered with CRES 440C material and/or zinc nickel plating per OEM specifications

Reference Chart

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

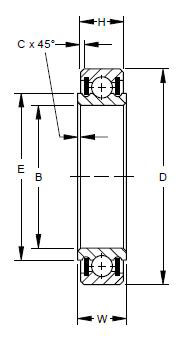

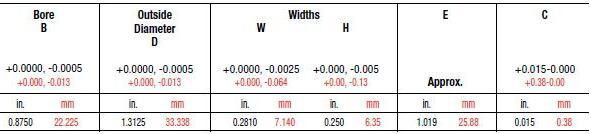

Q: Where can I find the dimensions of the Fafnir Bearing MB540DDFS464?

We have added the drawing and associated dimensions to the "Overview" tab of this web page. Please review them there.
