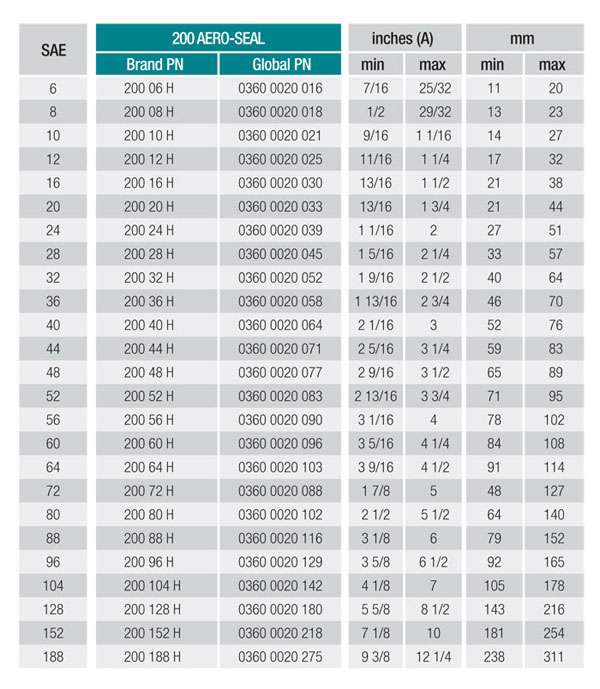

SAE | Min | Max | PN | Price | Buy |
---|---|---|---|---|---|
6 | 7/16 | 25/32 | QS200-06H | $2.49 | |
8 | 1/2 | 29/32 | QS200-08H | $2.48 | |
10 | 9/16 | 1-1/16 | QS200-10H | $2.48 | |
12 | 11/16 | 1-1/4 | QS200-12H | $2.50 | |
16 | 13/16 | 1-1/2 | QS200-16H | $2.52 | |
20 | 13/16 | 1-3/4 | QS200-20H | $2.53 | |
24 | 1-1/16 | 2 | QS200-24H | $2.59 | |
28 | 1-5/16 | 2-1/4 | QS200-28H | $2.61 | |
32 | 1-9/16 | 2-1/2 | QS200-32H | $2.59 | |
36 | 1-13/16 | 2-3/4 | QS200-36H | $2.79 | |
40 | 2-1/16 | 3 | QS200-40H | $3.69 | |
44 | 2-5/16 | 3-1/4 | QS200-44H | $3.91 | |
48 | 2-9/16 | 3-1/2 | QS200-48H | $3.69 | |
52 | 2-13/16 | 3-3/4 | QS200-52H | $3.85 | |
56 | 3-1/16 | 4 | QS200-56H | $3.91 | |
60 | 3-5/16 | 4-1/4 | QS200-60H | $3.96 | |
64 | 3-9/16 | 4-1/2 | QS200-64H | $3.91 | |
72 | 4-1/8 | 5 | QS200-72H | $4.18 | |
80 | 4-5/8 | 5-1/2 | QS200-80H | $5.06 | |
88 | 5-1/8 | 6 | QS200-88H | $4.79 | |
96 | 5-5/8 | 6-1/2 | QS200-96H | $5.06 |
Perforated stainless steel worm-drive clamp. Heavy-duty four-piece Quadra-Lock construction enables far more tightening torque to be delivered to the band perforations. Use for aircraft and heavy-duty industrial applications. Conical Arched Perforated Slots: More steel between perforations
for added strength and smoother worm-drive engagement. Made in the USA
9/16" (14.2mm) band 5/16" (7.9mm) slotted hex screw Per SAE standard J1508 Type “F” |
Breeze Clamp 200-08H
Easy to size and order. Exactly as anticipated. Shiny new hoses and clamps on the 75 yar old plane!
Breeze Clamp 200-32H
Breeze Clamp 200-48H
Breeze Clamp 200-10H
Breeze Clamp 200-24H
Breeze Clamp 200-16H
Good price, quick delivery
Breeze Clamp 200-10H
good product
Breeze Clamp 200-12H
good product
Breeze Clamp 200-10H
good product
Breeze Clamp 200-16H
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The web site lists the O.D. of each hose size. Select a clamp slightly larger than the O.D. of the hose selected.
Yes. The band, housing and screw are stainless steel.
The clamp screw is made of 410 stainless steel, and the band is 300 stainless. It can be used on hi-temp applications.
Per the supplier: No, these are not high torque.
Yes, the band and screw is stainless steel.
