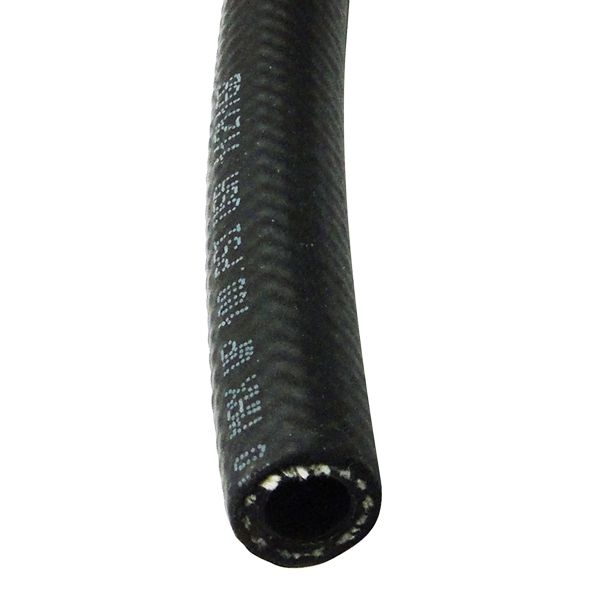

Super Flex Fuel Line Hose 1/4
MFR Model# 39704
| PN | ID | OD |
|---|---|---|
| 05-03597 | 1/4 | 0.500 |
Overview
|

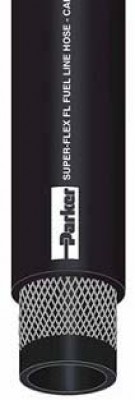

Parker's fuel line hose includes a thermoplastic barrier that helps protect the atmosphere from harmful hydrocarbons that escape through the carcass of ordinary fuel hose. This hose surpasses all of CARB's stringent permeation requirements and is similar to SAE30R7 specifications. The Super-Flex FL hose also features an abrasion and weather resistant cover to help protect from external application abuse. Approved for biodiesel fuels that meet ASTM D 6751 requirements per UL guidelines for Biodiesel compatibility. 4:1 Design factor |
Specifications
- Tube: NBR with a thermoplastic barrier
- Cover: Black Hypalon
- Reinforcement: Braided Polyester
- Temperature Range: -30°F to +257°F (-34°C to +125°C)
| PN | ID (in.) | Reinf. Braids | OD (in.) | Approx. Weight per 100 ft. | Min. Bend Radius | Max Rec. WP |
|---|---|---|---|---|---|---|
| 05-03597 | 1/4 | 1 | 0.500 | 9.7 | 1.5" | 100 |
| 05-03598 | 3/8 | 1 | 0.625 | 1.30 | 2.5" | 100 |
| 05-07223 | 5/16 | 1 | 0.562 | 11.3 | 2" | 100 |
Reviews
High quality fuel hose. Arrived quickly and very satisfied with the results.
Verified Purchase
Super Flex Fuel Line Hose 1/4
Ok so far. Time will tell.
Verified Purchase
Super Flex Fuel Line Hose 1/4
The hose was received with a continuous round hole in the center.
Verified Purchase
Super Flex Fuel Line Hose 1/4
Great product and delivery
Verified Purchase
Super Flex Fuel Line Hose 1/4
High quality
Verified Purchase
Super Flex Fuel Line Hose 1/4
The best fuel line I have found
Verified Purchase
Super Flex Fuel Line Hose 1/4
Verified Purchase
Super Flex Fuel Line Hose 1/4
Verified Purchase
Super Flex Fuel Line Hose 1/4
Great !
Verified Purchase
Super Flex Fuel Line Hose 1/4
Verified Purchase
Super Flex Fuel Line Hose 1/4
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This material is priced and sold per foot.
This is a rubber hose which uses barb type fittings per each application. No special fittings are attached to the hose.
Yes, this hose is approved to be used with ethanol.
This product is ASTM approved.
Yes, these hoses are compatible with AVgas.
You can use hose clamps a variety of hose clamps with this hose. For example: 6504, QS100-6W, QS200-06H, snapper clamps 05-00940 or 15-05994.
Yes, the Certificate of Conformance statement is included on the manufacturer's packing slip. It can be furnished with the order as long as it is requested at the time of order. Additional charges may apply.
The shelf life of this hose is 10 years if stored in normal conditions.
No, this is intended for use on experimental aircraft only.
Yes, the manufacture date is printed on the hose.
