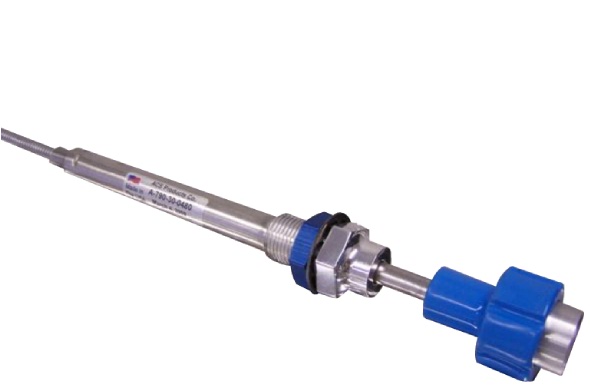

A-790 Vernier Control - Blue

Select Size:
36-Inch48-Inch60-Inch72-Inch84-Inch96-Inch
Price Includes GST
Quantity
Add to Wishlist

Overview

The A-790 vernier control has a .078" dia. stainless steel wire core. Both the wire and Teflon™ lined flexible casing may be shortened as required. The Teflon liner provides low friction with heat resistance in high temperature areas such as engine compartments. Furnished with FAA-style knobs (Black, Red & Blue). Max. travel: 3-3/8". Stocked in the following lengths (measurement taken from under the panel nut to end of wire with knob pushed in).

Made in USA
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Direct F Verified Purchase

A-790 Control 60 Blue Knob

June 15, 2023

Excelente quality

Trinitry S Verified Purchase

A-790 Control 36 Blue Knob

May 10, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the OD of the casing for the A-790 Vernier Control so I know what size of cable safe to order?

The A-790 housing O.D. is 1/4".

Q: What size is the threaded end on the A790 control so I can order the right rod end for it?

Model A-790 has a solid wire end. If you need a control with a threaded end you may want to look at model A-750 for a 10-32 threaded end, or A-970 for a 1/4-28 threaded end.

Q: Regarding the A-790 vernier control: What sized hole should I drill into the panel where the panel nuts lock the housing into place?

The panel requires a 3/4" hole to secure the knob end to the panel.

Q: Are these A-790 vernier blue controls FAA approved for certified aircraft?

No, only the part # A-790-12 is approved for certified aircraft.
