Overview

Main landing gear airframe trunnion kits from Marsh Brothers Aviation are for all models of Aerostar aircraft. One kit will cover one main landing gear. Avoid unnecessary and costly repairs by installing AeroTough™ GF polymer bushings. This preventative maintenance solution will ensure that you will never have the complications with seized bushings that traditional metal bushings can exhibit. Lifetime lubricated AeroTough™ bushings prevent problems: Eliminate anxiety about damages to the supporting structure. Never worry about lubricating tough-to-access place Zero risk of corrosion between sleeve and bushing. Be proactive: The cost to repair greatly exceeds the price of prevention. Don’t wait for disasters to occur. Make the change now!

Features

An essential part of your landing gear performing optimally is periodic lubrication at dynamic joints. Achieving proper lubrication is challenging because access is difficult. Improper lubrication cause corrosion leading to premature wear which then results in costly repairs at best, or worse and safety risk.

The Marsh Brothers Trunnion Bushing kit is insurance against the possibility of future problems caused by insufficient lubrication

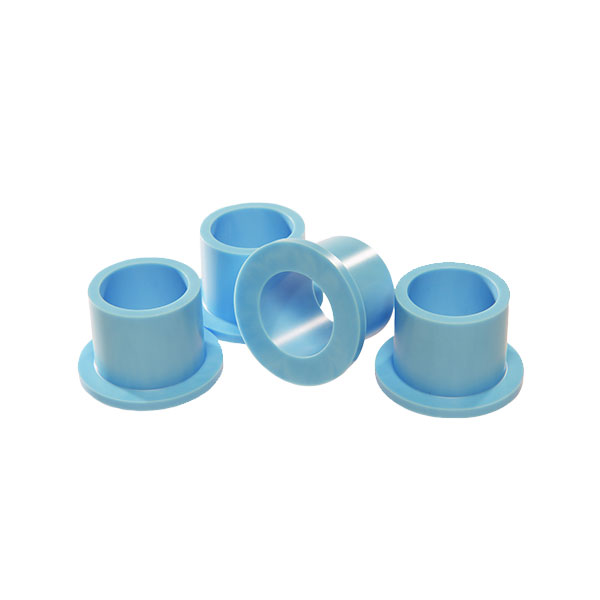

• AeroToughTM GF polymer bushings are robust and inherently wear resistant.
• AeroTough™ GF polymer bushings have built-in lubrication.

Non-metallic bushings eliminate the possibility of corrosion and can be easily installed and will provide smooth grease-free operation.

Specifications

• Approved for installation in U.S. registered aircraft by Federal Aviation Administration Supplemental Type Certificate # SA03484NY.
• Approved for installation in Canadian registered aircraft by Transport Canada Supplemental Type Certificate # SA14-43.
• List of approved Aerostar models: 600, 601, 601P, 602P and 700P.
