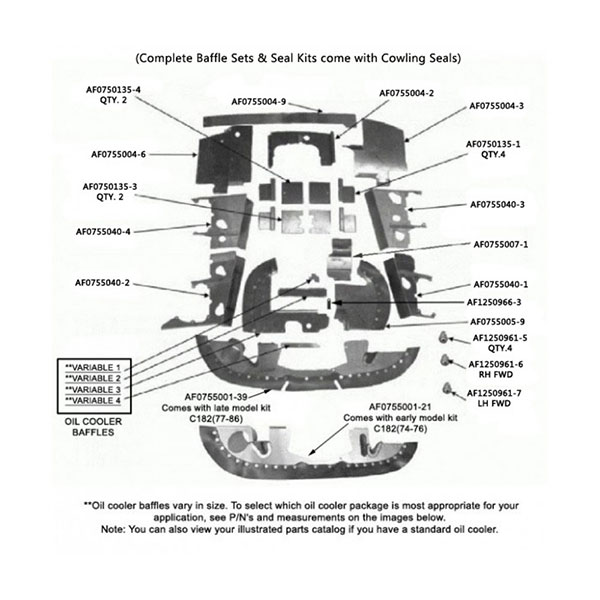

Cessna 182 (1977-86) Engine Baffle Components
From $17.50 to $487.00
Prices below incude GST
| Description | Part Number | Price | Buy |
|---|---|---|---|
| AF0750117-31 Baffle Support, Bare | 05-01582 | $91.14 | |
| AF0750135-1 Baffle, Bare | 05-01536 | $88.99 | |
| AF0750135-3 Baffle Component | 05-01540 | $72.33 | |
| AF0750135-4 Baffle, Inner Cylinder, Bare | 05-01561 | $72.33 | |
| AF0750152-1 Baffle Component | 05-03172 | $44.55 | |
| AF0750152-3 Baffle Component, Bare | 05-01554 | $44.55 | |
| AF0755001-24 Baffle Component | 05-03174 | $329.94 | |
| AF0755001-30 Baffle Component | 05-03170 | $305.75 | |
| AF0755001-39 Baffle Component | 05-03155 | $535.70 | |
| AF0755004-2 Baffle Component | 05-03160 | $153.73 | |
| AF0755004-3 Baffle Assembly Left Hand Aft, Bare | 05-03161 | $185.63 | |
| AF0755004-6 Baffle Component | 05-03156 | $300.25 | |
| AF0755004-9 Baffle Component | 05-03159 | $52.25 | |
| AF0755005-9 Baffle Component | 05-03168 | $320.05 | |
| AF0755007-1 Baffle Component | 05-03163 | $87.73 | |
| AF0755009-1 Baffle Component | 05-03175 | $19.25 | |
| AF0755010-1 Baffle Component | 05-03173 | $80.03 | |
| AF0755011-1 Baffle Component | 05-03169 | $75.62 | |
| AF0755012-2 Baffle Component | 05-03171 | $20.35 | |
| AF0755040-1 Baffle Component | 05-03164 | $337.70 | |
| AF0755040-2 Baffle Component | 05-03158 | $423.50 | |
| AF0755040-3 Baffle Component | 05-03162 | $368.50 | |
| AF0755040-4 Baffle Component | 05-03157 | $387.20 | |
| AF0851700-96 Baffle Component | 05-01538 | $108.85 | |
| AF1250961-5 Baffle Component | 05-03165 | $52.25 | |
| AF1250961-6 Baffle Component | 05-03166 | $52.25 | |
| AF1250961-7 Baffle Component | 05-03167 | $52.25 |
Overview
|
Complete Engine Baffle Components for Cessna 182 Late (1977-86).
These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install. Airforms is the premier manufacturer of FAA-PMA replacement baffle components. Note:
|
Features
- Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
- Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
- All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
- The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
- We also sell seal kits if your metal baffle pieces are in good shape.
Eligibility
- C-182
- 182-65176 thru 182-68615
- FAA-PMA Approved
- Engine: Continental O-470 -R, -S, -U
