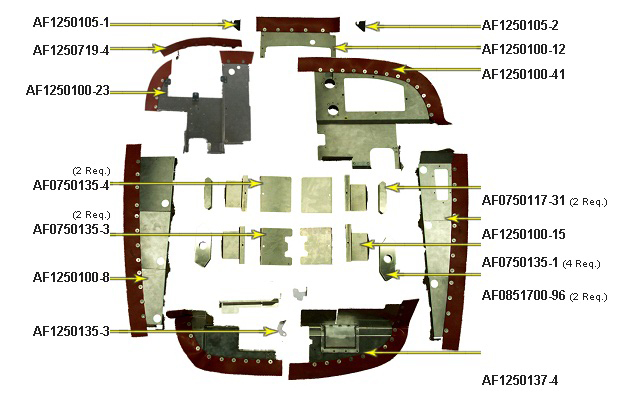

Description | Part Number | Price | Buy |
---|---|---|---|
AF1250105-1 Baffle Component | 05-03068 | $71.23 | |
AF1250100-8 Baffle Component | 05-03071 | $240.84 | |
AF0750135-4 Baffle, Inner Cylinder, Bare | 05-01561 | $72.33 | |
AF1250135-3 Baffle, Bracket, Bare | 05-03072 | $74.53 | |
AF0750135-3 Baffle Component | 05-01585 | $72.33 | |
AF1250927-1 Baffle Component | 05-03074 | $432.30 | |
AF0851700-96 Baffle Component | 05-01574 | $108.85 | |
AF0750135-1 Baffle, Bare | 05-01536 | $88.99 | |
AF0750117-31 Baffle Support, Bare | 05-01582 | $91.14 | |
AF1250100-15 Baffle Component | 05-03073 | $245.25 | |
AF1250100-41 Baffle Component | 05-03075 | $453.20 | |
AF1250100-12 Baffle Component | 05-03076 | $78.93 | |
AF1250105-2 Baffle Component | 05-03077 | $71.23 | |
AF1250719-4 Baffle Component | 05-12936 | $148.50 |
All baffles are bare 6061-T6 aluminum unless the powder coating option is chosen. The powder coating finish is a black and grey hammertone. Powder coating option available for an additional 20%. Please email or call for more details. The silicone baffle seal material can be special ordered in orange, dark blue or black by calling 1-877-477-7823 or by email |
Eligibility: 210: Serial No. 21059200 thru 21060089 1960 to 1969 |
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
