Bolt Type Terminal

$2.25/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-16100
MFR Model# 2000 MIN

Overview

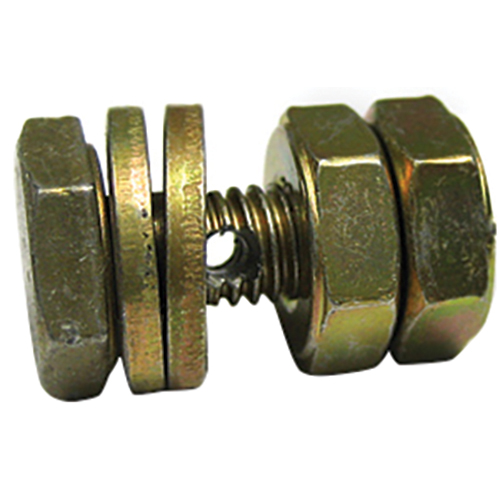

Special 3/16" dia. bolt with drilled shank. With hex nuts and washers. Use instead of “bug” nut.

Reviews

Fine

Rodney B Verified Purchase

Bolt-Type Terminal

March 24, 2023

items arrived early

Leon T Verified Purchase

Bolt-Type Terminal

January 26, 2023

to small for the Bowden cable to go thru

Stephen R Verified Purchase

Bolt-Type Terminal

April 26, 2022

Drilled hole position not correct for me but a great product

Cowell A Verified Purchase

Bolt-Type Terminal

July 10, 2024

The wire hole is too small to take 1/4 bowden cable inner wire. Needs to be .079 at least. AS&S should also provide alternative using a AN4 bolt to fill larger holes in a mounting. Cannot drill out the AN3.... insufficient metal remaining and AN3 is sloppy in a 1/4 mounting hole. How about it boys??

John M
September 25, 2022

Totally useless hole is in the wrong place and the bolt is too short

Ed S Verified Purchase

Bolt-Type Terminal

October 2, 2021

this item can not be used as replacement for a bug nut on my o-320 lycoming.(carb heat lever at carb). too short and hole wrong place.

Lawrence S
March 21, 2018

The hole is in the wrong spot, it should be about 1/16 toward the end of the bolt

Jared J
November 16, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How is this Bolt Type Terminal used? Also, what are the dimensions?

It is used to connect a solid wire to an actuator arm, similar to a throttle arm on a carburator. The bolt is a special drilled AN3-4, which is 3/16" diameter, and 17/32" long. You would slide the bolt through the arm hole, slide the solid wire through the drilled hole in the bolt, and tighten the nut supplied to secure the solid wire at that location on the arm.

Q: What thread is on the bolt? I need to find a lock nut that fits this bolt.

It has 10-32 threads.

Q: What wire diameter is this for? What hold strength do they have before wire will slip?

The hole is .075", it should work with all of our solid wire end controls.
