Plain Dural Knob Control 5
MFR Model# 36200042
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview

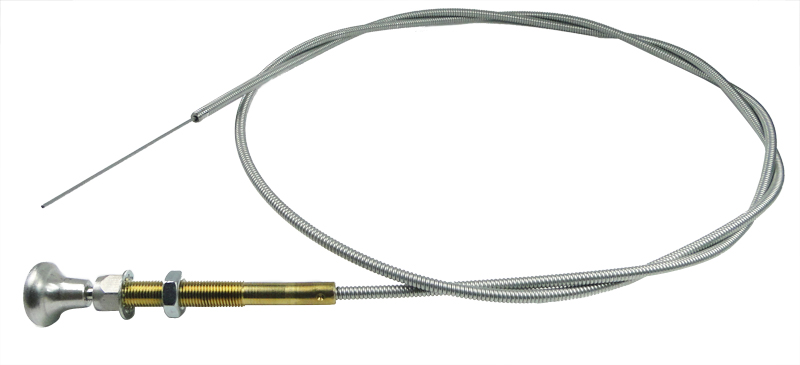

| Button Type Dash Control designed for use with many control system applications. Easily installed. Operates smoothly. All adjustable parts are metal. 7/8" Dural button on 3/16" diameter shaft. Maximum travel is 2". Furnished in 5 ft. and 8 ft. length. May be shortened. Order Inserts separately. |
Reviews
looks to be good quality . i would prefer a slightly larger knob
Verified Purchase
Plain Dural Knob Control 5
Came fast, was easy to install, works great, and looks fantastic.
Verified Purchase
Plain Dural Knob Control 5
Verified Purchase
Plain Dural Knob Control 5
Verified Purchase
Plain Dural Knob Control 5
Verified Purchase
Plain Dural Knob Control 5
Verified Purchase
Plain Dural Knob Control 5
OK
Verified Purchase
Plain Dural Knob Control 5
Very durable. Looks nice on the dash.
Excellent low cost actuator. Easy to install, use w3 adel clamps.
Nice construction
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The wire diameter would be .055".
You would need a 3/8" diameter hole.
The 05-14200 is measured from the from the front of the mounting nut, where the panel sits flush, to the end of the wire. The rocker box screws are part number 08-03697.
This unit does not have any specific instructions to attach the cable, but the 05-14200 has a .055" diam. inner wire, so you could probably use a bolt type terminal like p/n 05-16100, or a cable B-Nut like 05-16240. Just verify the size of the hole in the arm and select the best unit for that application.
The cable assembly is constructed of a Brass head tube, galvanized carbon steel round wire conduit, galvanized carbon steel round wire inner member, commercial zinc plated hardware carbon steel, zinc plated carbon steel input rod with a pressed on knob, it is not recommended that this knob be removed, Orscheln products is not liable for any subsequent damage or inoperability caused by removing the knob.
The OD conduit measurement is 0.20".
Just short of 3".
The inserts are the decals for Carb heat, parking brake, mixture, etc.
We believe it could be, however this is a plain push pull cable, it does not have a lock feature or specific application.
