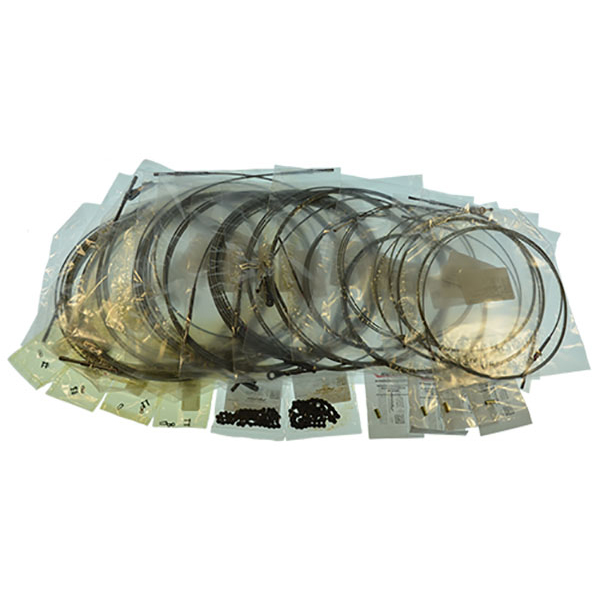

McFarlane Cable & Chain Kit Cckt206H-01S

$3560.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-04605
MFR Model# CCKT206H-01S

Overview

Complete flight control and trim chain kits for each of the 150 different cable groups required to service all single engine aircraft from the model 120 through model 185 airplanes. It is a tedious and time consuming job to research the part manuals for all of the cables required for a complete aircraft. McFarlane has done the research and has all of the part numbers required for your aircraft. You not only gain tremendous time savings with McFarlane cable kits, you receive substantial price discounts.

We carry all of the cables in either Galvanized-Carbon Steel or Stainless Steel. All components are fully traceable, high quality, and proof tested.

Stainless Steel or Galvanized Steel Cable?

Stainless steel is very corrosion resistant and works well in tough environments such as salt air, water saturation, or agricultural chemicals. Galvanized carbon steel and stainless cables are soaked in a Mil spec rust preventative and lubricating compound. In normal environments the galvanized cable will not suffer from corrosion damage for decades. The advantages of galvanized cable are its wear resistance and cost. It will resist abrasion wear four or five times longer than stainless steel as stainless steel wire is high in nickel and much softer than the carbon steel wire. Stainless steel cable will show signs of wire wear at pulleys and fairleads much quicker than the galvanized carbon steel wire and stainless steel cable costs about 30% more than galvanized carbon steel cable. We recommend using galvanized steel cables except in coastal geographical areas, agricultural aircraft, float planes, and other applications where the cable is exposed directly to water.

Kit Contents

Part Number DescriptionQtyUnit of Measure
MC0510105-192 CABLE (Flap Direct RH) 1EACH
MC0510105-193 CABLE (Flap Retract) 1EACH
MC0510105-194 CABLE (Flap Retract) 1EACH
MC0510105-303 CABLE (Rudder Forward LH) 1EACH
MC0510105-304 CABLE (Rudder Forward RH) 1EACH
MC0510105-359 CABLE (Flap Direct LH) 1EACH
MC1260078-110 CABLE (Aileron Yoke Primary) 1EACH
MC1260078-111 CABLE (Aileron Yoke LH) 1EACH
MC1260078-112 CABLE (Aileron Yoke RH) 1EACH
MC1260417-7 CABLE (Park Brake Cable & Tube1EACH
MC1260505-112 CABLE (Rudder Aft RH) 1EACH
MC1260505-146 CABLE (Elevator Trim Aft LH) 1EACH
MC1260505-154 CABLE (Aileron Carry Thru RH) 1EACH
MC1260505-158 CABLE (Aileron Direct Outboard2EACH
MC1260505-160 CABLE (Aileron Carry Thru LH) 1EACH
MC1260505-195 CABLE (Elevator Trim Forward L1EACH
MC1260505-197 CABLE (Park Brake) 1EACH
MC1260505-198 CABLE (Elevator Trim Forward R1EACH
MC1260505-199 CABLE (Elevator Trim Aft RH) 1EACH
MC1260505-406 CABLE (Elevator Control) 2EACH
MC1260505-419 CABLE (Rudder Aft LH) 1EACH
MC1260505-420 CABLE (Aileron Direct Inboard)2EACH
MCS2294-25 LINK, Chain Connector 6EACH
MCS2295A25-111 CHAIN (Elevator Trim Fwd Upper1EACH
MCS2295P25-185 CHAIN (Elevator Trim Fwd Lower1EACH
MCS2295P25-47 CHAIN (Elevator Trim Actuator)1EACH
