Cessna 150 Engine Baffle Components

0 Reviews 2 Answered Questions
From $13.65 to $582.00
Prices below incude GST
Main Image
Main Image
Main Image
Main Image

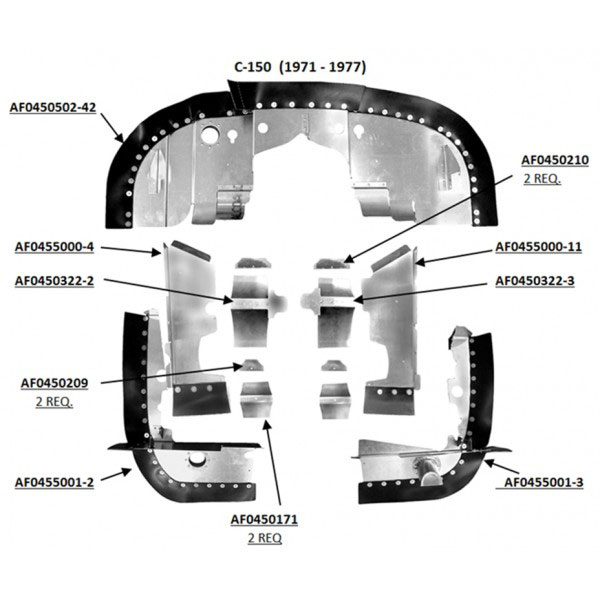

Description Year Part No. Price Buy
AF0450171 Baffle Component1964-70
1971-77
05-01488
$68.09
Quantity
AF0450209 Baffle Component1964-70
1971-77
05-01487
$15.02
Quantity
AF0450210 Baffle Component1964-70
1971-77
05-01486
$18.26
Quantity
AF0450322-2 Baffle Component1964-70
1971-77
05-01484
$62.43
Quantity
AF0450322-3 Baffle Component1964-70
1971-77
05-01490
$62.43
Quantity
AF0450502-42 Baffle Component1964-70
1971-77
05-01482
$640.20
Quantity
AF0450502-16 Baffle Component1964-70
05-01483
$374.00
Quantity
AF0450502-19 Baffle Component1964-70
05-01489
$374.00
Quantity
AF0450502-22 Baffle Component1964-70
05-03079
$108.63
Quantity
AF0450502-23 Baffle Component1964-70
05-03081
$100.93
Quantity
AF0455000-4 Baffle Component1971-77
05-03078
$100.93
Quantity
AF0455000-11 Baffle Component1971-77
05-03080
$104.34
Quantity
AF0455001-2 Baffle Component1971-77
05-01485
$321.15
Quantity
AF0455001-3 Baffle Component1971-77
05-01491
$321.15
Quantity
Subtotal $0.00
Add to Wishlist

Overview

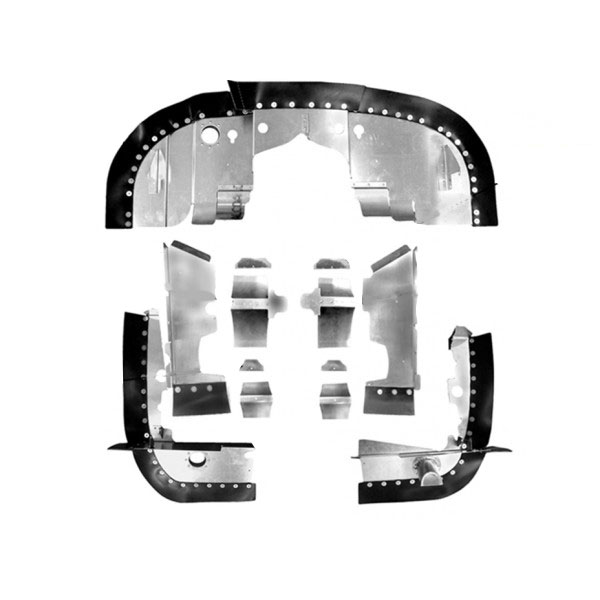

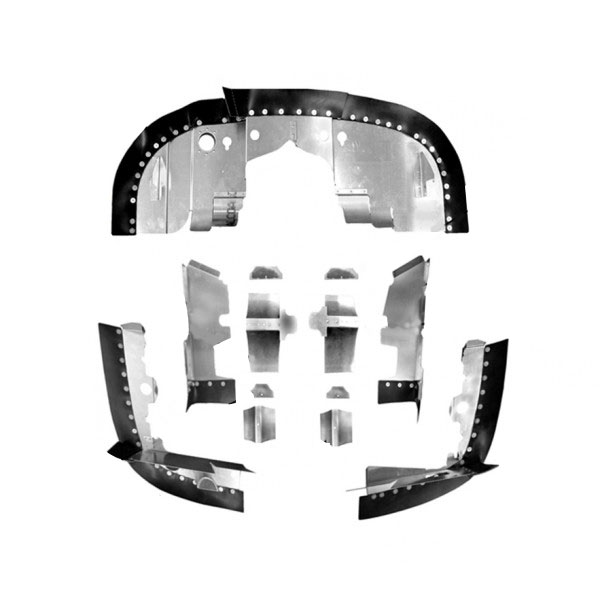

Engine Baffle Components for Cessna 150 for (Series 1964-70 & 1971-77).

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Individual components only with Black Seals and no Powder Coating.

Note:
  • If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
  • Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

Eligibility

  • Series: 1964-1970 - Serial Number 15060088 thru 15072003 &
  • 1971-77 - Serial Number 15072004 and on - F15000659 and on - A15000227 and on - FA15000082 and on
  • FAA-PMA Approved
  • Engine: Continental O-200-A
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of rivets are used in these Cessna 150 baffle set?

Per the supplier: It depends on what the rivets are for, but they are all hard rivets. They range from MS20426AD3-3 and MS20470AD3-3 to MS20470AD4-6 depending on where they are use and how many layers of material they go through. But they're all "AD" hard rivets.

Q: Do the individual pieces or the complete kits come with the support fasteners?

These baffle kits and pieces do not come with hardware.
