Throttle And Choke Cables - Non-Locking

From $182.85 to $243.95
Prices below incude GST
Model Number Description Part Number Price Buy
101D048Control Dual 4ft W/O Knob
05-11212
$208.73
Quantity
101D048-RBControl Dual 4ft Round Black Knob
05-11213
$201.14
Quantity
101D048-RBCControl Choke Dual 4ft Round Black Knob
05-11214
$208.73
Quantity
101D048-RCControl Dual 4ft Round Clear Knob
05-11215
$213.18
Quantity
101D048-RCCControl Choke Dual 4ft Round Clear Knob
05-11216
$219.99
Quantity
101D048-RLControl Dual 4 Ft Round Blue Knob
05-11217
$201.14
Quantity
101D048-RLCControl Choke Dual 4 Ft Round Blue Knob
05-11218
$208.73
Quantity
101D048-RRControl Dual 4ft RoUnd Red Knob
05-11219
$213.18
Quantity
101D048-RRCControl Choke Dual 4ft Round Red Knob
05-11220
$208.73
Quantity
101D072Control Dual 6ft W/O Knob
05-11221
$214.23
Quantity
101D072-RBControl Dual 6ft Round Black Knob
05-11222
$233.15
Quantity
101D072-RBCControl Choke Dual 6 Ft Round Black Knob
05-11223
$226.55
Quantity
101D072-RCControl Dual 6ft Round Clear Knob
05-11224
$233.15
Quantity
101D072-RCCControl Choke Dual 6ft Round Clear Knob
05-11225
$226.55
Quantity
101D072-RLControl Dual 6 Ft Round Blue Knob
05-11226
$233.15
Quantity
101D072-RLCControl Choke Dual 6ft Round Blue Knob
05-11227
$226.55
Quantity
101D072-RRControl Dual 6ft Round Red Knob
05-11228
$233.15
Quantity
101D072-RRCControl Choke Dual 6ft Round Red Knob
05-11229
$226.55
Quantity
101D096 Control Dual 8ft W/O Knob
05-11230
$241.94
Quantity
101D096-RBControl Dual 8ft Round Black Knob
05-11231
$247.45
Quantity
101D096-RBCControl Choke Dual 8ft Round Black Knob
05-11233
$254.05
Quantity
101D096-RCControl Dual 8ft Round Clear Knob
05-11234
$247.45
Quantity
101D096-RCCControl Choke Dual 8ft RoUnd Clear Knob
05-11235
$254.05
Quantity
101D096-RLControl Dual 8ft Round Blue Knob
05-11236
$247.45
Quantity
101D096-RLCControl Choke Dual 8ft Round Blue Knob
05-11237
$239.75
Quantity
101D096-RRControl Dual 8ft Round Red Knob
05-11238
$247.45
Quantity
101D096-RRCControl Choke Dual 8ft Round Red
05-11239
$239.75
Quantity
101D144Control Dual 12ft W/O Knob
05-11240
$255.15
Quantity
101D144-RBControl Dual 12ft Round Black Knob
05-11241
$261.75
Quantity
101D144-RBCControl Choke Dual 12ft Round Black Knob
05-11242
$268.35
Quantity
101D144-RCControl Cual 12ft Round Clear Knob
05-11243
$261.75
Quantity
101D144-RCCControl Choke Dual 12ft Round Clear Knob
05-11244
$268.35
Quantity
101D144-RLControl Dual 12ft Round Blue Knob
05-11245
$246.34
Quantity
101D144-RLCConrol Choke Dual 12ft Round Blue Knob
05-11246
$268.35
Quantity
101D144-RRControl Dual 12ft Round Red Knob
05-11247
$261.75
Quantity
101D144-RRCControl Choke Dual 12ft Round Red Knob
05-11248
$252.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

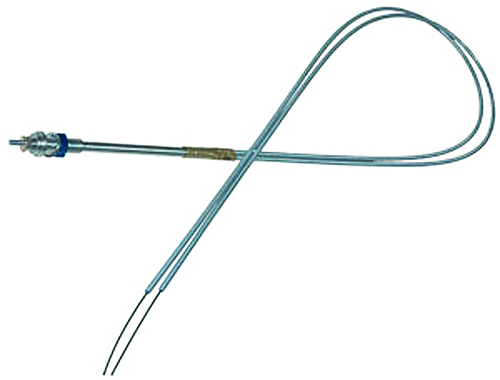

Non-Locking Choke Controls for Dual Carburetor Rotax 912/914 Series Engines Allows a neat, clean installation without a clunky splitter box These controls do not feature a locking mechanism, however they have an internal elastomer seal to dampen vibration and provide a small amount of resistance. If your choke installation features a return spring, this control will return to the closed position when released.

These controls are not for use on certified aircraft, or for use for flight controls or flight control trim tabs.

Features

  • All metal construction
  • High temperature Teflon™ lined conduit for smooth, consistent control (Cheapy controls with poly liners will not tolerate engine temperatures)
  • Available in 4, 6, 8, 12 foot and custom lengths
  • Measured from panel fitting to end of conduit, wires extend at least 3 inches beyond conduit
  • Easily trimmed to length
  • Adjustable cable stops to limit travel

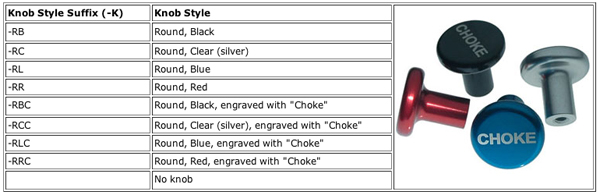

  • Many knob styles available or provide your own knob with 10-32 thread
  • Manufactured to the same quality standards as McFarlane's FAA-PMA parts
  • Anodized aluminum knobs
  • Slip fit conduit terminal fittings also available: part numbers 6424 or 6271
  • Includes two adjustable barrel stops to attach to the carb choke arm (no swaging or soldering necessary)

Specifications

  • Travel (stroke): 3.5" minimum
  • Conduit: 0.188 inch OD Teflon™ lined
  • Max Work Loads: Pull: ~25 lbs (Not designed for push loads)
  • Operating Temp: -65 to 450 deg F
  • Inner Wire: 1/16" 7x7 Stainless Steel
  • Panel Hole: 7/16-20 UNF thread

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the portion of the single cable between the knob and the spit the same for 4’ & 5’ cables? (So the extra length all comes after the split)

The length between the mounting point and the split is the same on all the cables.
