Weatherhead Fuel Shut-Off Valve
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

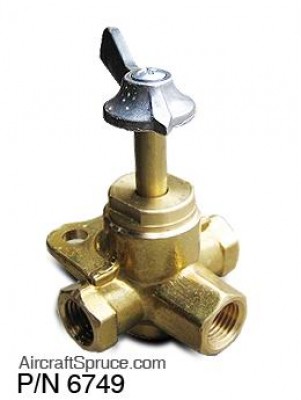

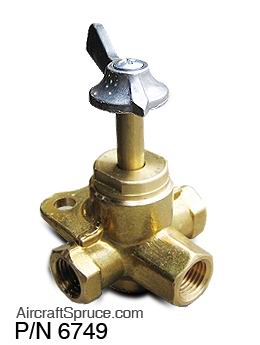

These 3-way Weatherhead valves, with 1/4 female pipe ports feature a Delrin-spool design for smooth operation. Handle mounted on 1-1/4" long shaft. Not FAA approved. Model No. 6749 3-Port Valve - Flow is from either side to middle port. Model No. 6747 4-Port Valve - Flow is from any horizontal port to bottom port. |
Reviews
as advertised
Verified Purchase
Fuel Shut Off Valve P/N 6749
Verified Purchase
Fuel Shut Off Valve P/N 6749
Works well all u need
Verified Purchase
Fuel Shut Off Valve P/N 6749
Good price. Terrible product. The plastic valve core broke on the second or third turn of the valve. I would not purchase another one except if I was looking to use it for parts.
Verified Purchase
Fuel Shut Off Valve P/N 6749
Verified Purchase
Fuel Shut Off Valve P/N 6749
ideal parts
Verified Purchase
Fuel Shut Off Valve P/N 6749
Be careful, I received my first valve and noticed some wrench marks on the cap. There was a gob of fuel lube in each port. This is a non lubricated valve. The handle was very hard to turn. I sent it back on Dec 15 and as of today Mar 30 have heard nothing. Spruce told me it went to the Supplier but don’t know who that is. I ordered a new valve and it works great, 5 stars. I’m out the cost of the original faulty valve so far.
This valve is an excellent replacement for the one in my antique plane. Good quality and fast shipment.
Verified Purchase
Fuel Shut Off Valve P/N 6749
I found it to be very stiff and was going to use a shaft to activate it, but returned it instead. If used with direct hand activation , then probably OK.
Verified Purchase
Fuel Shut Off Valve P/N 6749
Excellent part, Excellent Shipping time...
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this valve does not have a "both" position.
Yes, we pulled one from stock and looked at the inner valve as I turned the knob and if the center was the incoming fuel, you can direct the fuel from right, to left, then off at the center.
There is not a replacement seal available. You would have to purchase a new unit if your valve is no longer good.
The valves have female 1/4" NPT threads.
The shaft is 5/16".
Yes. It does click when the ports are lined up.
No, these do not have a "both" selection. It will be either left only, right only or off.
No there is not a labeled plate specifically available for this valve.
