Two Piece Firewall Shield - 1/4-Inch Hole
MFR Model# 61-250
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

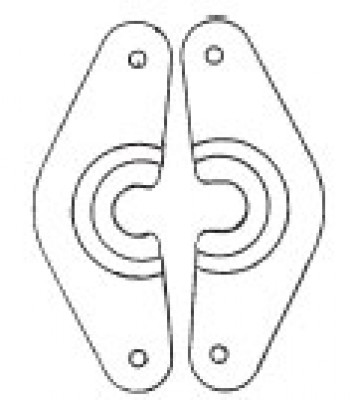

Two piece firewall shield, 1/4-Inch hole and 3/4-Inch dimple for grommet. Two piece shields for use over cables or wires with large end-fittings or existing installations. Single piece for use where the cable or wire may pass through the hole. Flat shields designed for use on wooden or composite firewalls using a fire resistant sealant to prevent leaks. Both types of shield available in flat or with dimple to accommodate rubber grommets up to outside diameter. Actual hole size in 2 piece shields is slightly larger than indicated to prevent chafing cable. Ream pilot hole in single piece shields oversize for the size grommet used. Use grommets that fit tightly around the cable or wire to insure a good seal. Shields may be installed with screws, bolts and plate nuts or rivet nuts. Install cable and grommet in firewall. Locate the shield to insure that it is centered on the cable - then drill attach holes in firewall. Shields predrilled with 5/32” mounting holes. If more than one cable passes through grommet fire resistant sealant must be applied to grommet. **Caution: Any holes drilled in the firewall are potential source of carbon monoxide in the cockpit. Extreme caution must be exercised when installing firewall shields in your aircraft. They do not provide the necessary seal around cables or wires to prevent carbon monoxide, smoke or fire from entering the cockpit. The shields are designed only to protect the sealing material (grommets/gaskets) from excessive heat. |
Reviews
Looks great so far. Exactly the same dimensions as the ones on my 61 Skylane. Just in case you were wondering. 2-1/4 center to center on the mounting holes.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
What we recommend are the AN931 rubber grommets. We have the dims listed on the webpage, just do a keyword search for AN931 on our site. However, we do not have any specific units for these firewall shields.
