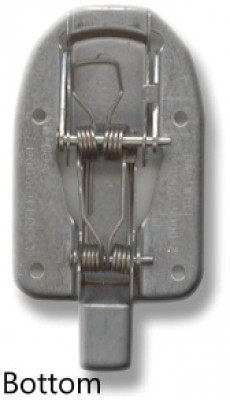

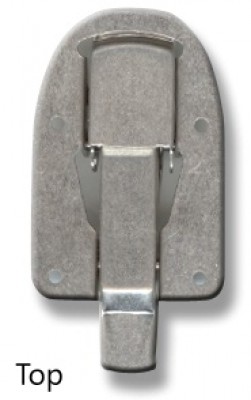

H-5000-2 Flush Latch

$142.73/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-11830
MFR Model# 21QRP21-102-132

Overview

The H-5000-2 latch this unique spring-loaded, trigger action latch is for cowling and access doors. Made of stainless steel. Rivet or spot weld to structure.

Bolt Offset: .132
Trigger Offset: .102
Max. Depth: 1.23

Reviews

There are new and surplus models offered on this page. The new model is considerably more expensive but both are clearly labelled to help differentiate and make the correct decision.

Jeff M
May 7, 2013

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I need more detail about LOCK H-5000-2. Are these priced and sold individually or in a pack?

There are two versions on this page. One of them is factory new and the other is surplus. Both versions are priced and sold per latch. The surplus model is much less expensive than the factory new latches.

Q: Is this H-5000-2 latch (part # 05-11830) surplus condition?

No, our part # 05-11830 is new condition. For surplus H-5000-2 use part # 05-01017.

Q: Im not really concerned about what size the surplus H-5000-2 (part # 05-01017) I would receive,, but I would like 2 the same size. Is it possible to request 2 of the same size?

Yes, use special instructions in Shopping Cart to request two of exact same size.

Q: Do you know the difference between H-5000-2 and H-5000-2-081-081?

We do not have any data showing these differences, we do not carry the H-5000-2-081-081.

Q: Could you tell me the width, length, mouting hole diameter of H-5000-2?

Width is 1.425 inches, Length is 2.680 inches and the hole diameter is .089.
