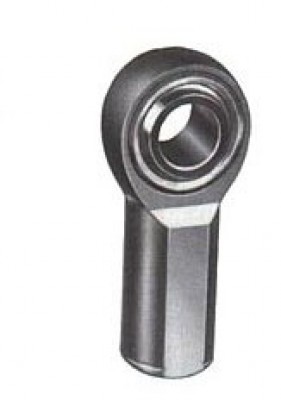

- Photo may represent series and not specific product
- SHARE
Hollow Shank MS21152 Bearing
From $112.75 to $113.85
Prices below incude GST
Overview
| MS21152 Bearings with hollow shank, note: Plyo seal |
Features
- Precision series
- Double row, ball, self-aligning
- 10° permissible misalignment in either direction
- These bearings are manufactured with an internal play
- of .0004 in. (.010mm) max.
- Inner and outer raceway surface finish = 8 micro in.
- AA max.
- Equipped with PTFE seals
- Exposed surfaces except bore, cap, and seals are
- cadmium plated
- Outer shank - 90,000 psi min. tensile strength
Specifications

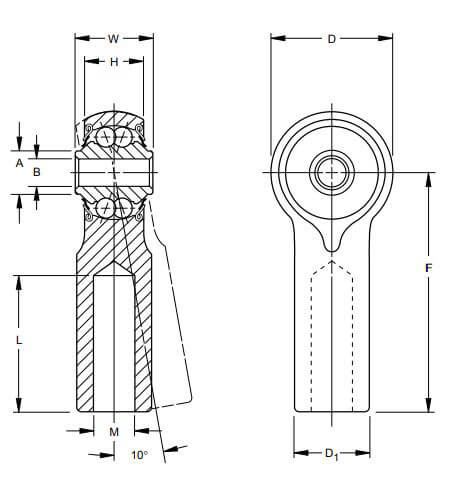

| OEM PN | MS21152 Dash No. | B Bore (in.) | D Outside Dia. (in.) | W Width (in.) | H Width (in.) | A Approx. (in.) | F (in.) | L (in.) | D1 (in.) | M (in.) | Weight (in.) | Radial Limit Load Rating (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| REP3H5 | -1 | 0.1900 | 0.781 | 0.437 | 0.328 | 0.281 | 1.375 | 0.875 | 0.430 | 0.272 | 0.272 | 1,000 |
| REP4H6 | -2 | 0.2500 | 0.938 | 0.593 | 0.438 | 0.345 | 1.875 | 1.219 | 0.625 | 0.386 | 0.12 | 1,720 |
