22167 Small Square Flanged Eyeball Vent

Select Color:
SilverBlack
Price Includes GST
Quantity
Add to Wishlist

Overview

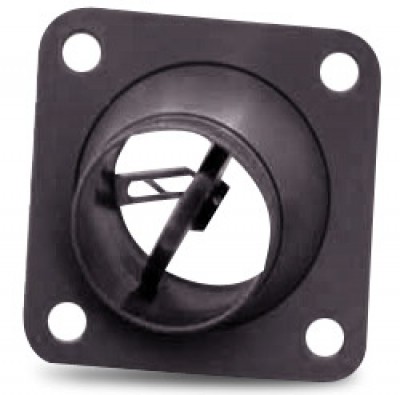

Small square-flange eyeball vent. Made from aircraft-grade 6061-T6 aluminum and hard anodized, it weighs just 3 oz. Mounting flange is 2.20" square, with a hole mounting pattern of 1.70". Vent adjustment is 25 degrees of freedom from the vent centerline, and has an opening of 1.2" which is much larger than vents typical of this size.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What sized vent hose do these small square flanged eyeball vents connect to?

We recommend using 2" ducting with these eyeball vents. Standard breeze clamps will work fine to clamp the connection.

Q: The product dimensions indicate a hole pattern of 1.7, yet the opening in the eyeball is clearly smaller than the bolt pattern, why the recommendation of 2 duct?

If the holes are on a 1.7 center to center pattern then if you were to measure hole to hole on an angle (top left to lower right for example) its almost 2.5 inches.
