Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

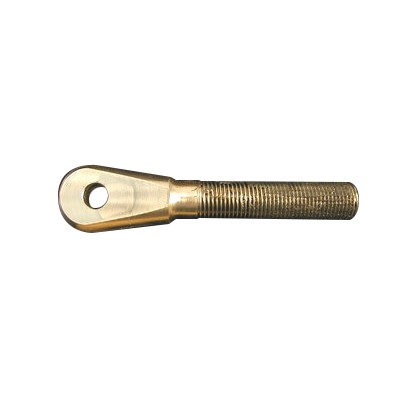

The approx. dimensions are: 1/2-20 UNF-2A thread, 3-3/4" Length, 5/16" Bolt Hole Diameter. These forks are priced and sold individually, not as a pair.
The opening from the top from hole to hole would be .210". Measuring from the bottom opening width would be .623". ID of the hole would be .312".
The width of the slot is approximately 0.2188 inches.
Center hole to threads 3-5/16.
