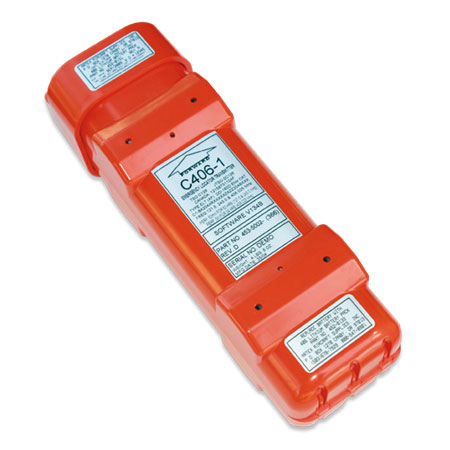

Artex C406-1 ELT With Blade Antenna
Select Model:
For USAFor InternationalPrice Includes GST
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
The Artex C406 series transmits on all 3 emergency frequencies (121.5/243.0 and 406.025 MHz.) The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. The C406 also transmits a 406.025 MHz encoded digital message to the COSPAS/SARSAT satellite system, which allows for rapid identification and reduces search and rescue response time. The C406 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406 is available for use with Artex's low cost whip antennas, rod antenna, or a blade antenna. The C406 also may be interfaced with the Artex ELT/NAV Interface which enables latitude and longitude data to be transmitted as part of the 406.025 MHz message. The C406 series is available as the C406-1, which uses a single coax cable to accommodate all three frequencies, or as the C406-2, which uses two coax cables to accommodate all three frequencies. The C406 series ELT is available for fixed wing and helicopter (HM) applications. COSPAS/SARSAT, FAA TSO C126 and JTSO-2C126 Approved. Download C406-1 Series Specification Sheet |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
