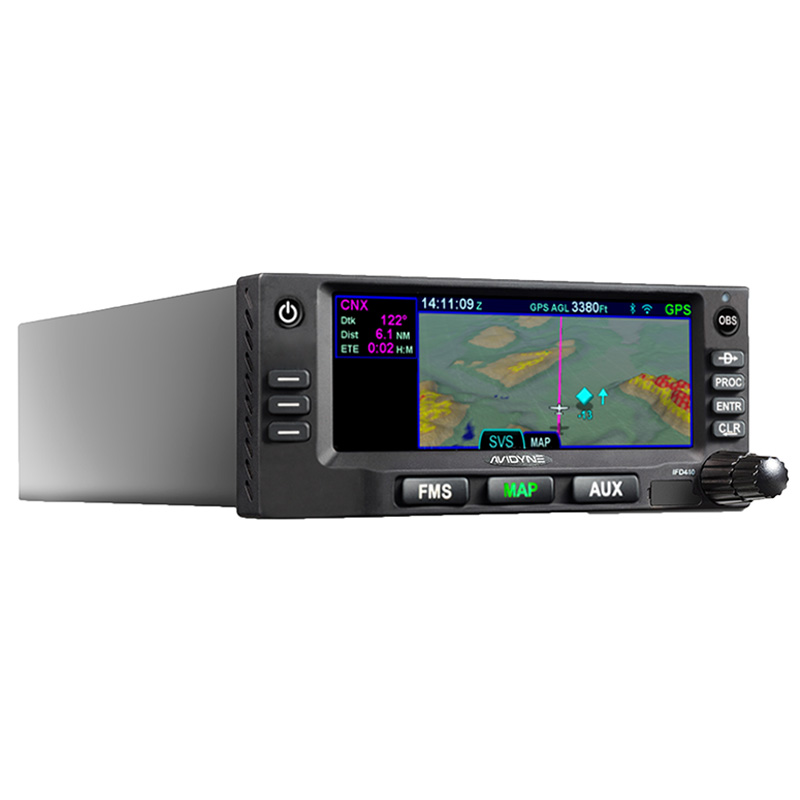

Avidyne IFD410 SBAS / LPV FMS Navigator

Select Version
Black BezelGray Bezel
Price Includes GST
Quantity
Add to Wishlist

Overview

Compact and powerful, the IFD410 FMS/GPS Navigator is an excellent choice for general aviation aircraft and helicopters looking to upgrade to modern SBAS/LPV capability. This next-generation panel-mounted navigator also flight planning and in-flight changes easy with its Hybrid Touch user interface and integrated WiFi and Bluetoothฎ that work seamlessly with your iPad and the included MK10 BT Keyboard respectively. You’ll have big glass capabilities for a fraction of the cost.

Features

  • Full SBAS/LPV FMS/GPS Capabilities

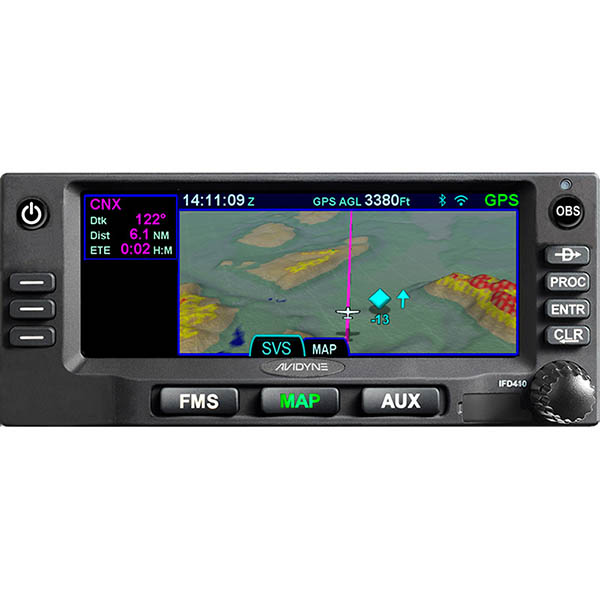

  • 3D exo-centric Synthetic Vision
  • Hybrid touch user interface

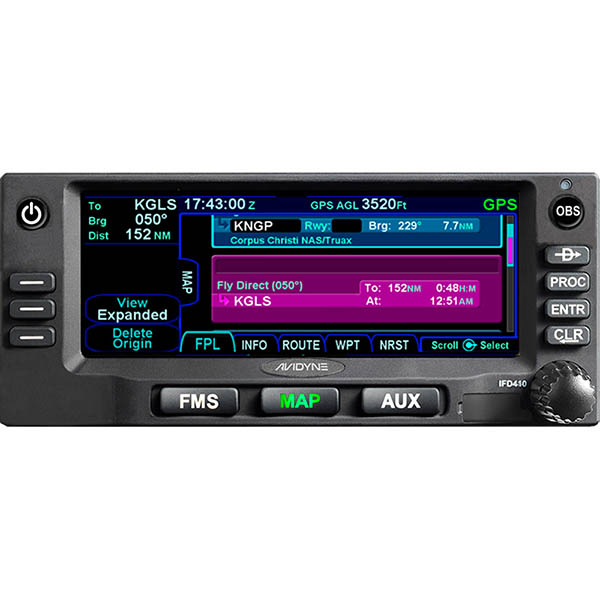

  • FMS Preview™ flight plan loading with real-time graphical depictions
  • Seamless integration to Avidyne’s IFD 100 iPad app

Specifications

  • 4.8” Diagonal w/Touch Screen
  • Full VGA - 640 x 480 pixels
  • 65,535 colors
  • Ultrabright sunlight readable w/LED Backlighting
  • Width: 6.30” (16.0cm)
  • Height: 2.66“ (11.7cm)
  • Depth: 11.00“(27.5cm) behind panel including connector
  • IFD410 - 5.16 lb (2.34 kg)

Series Comparison

IFD 550 IFD 545 IFD 540 IFD 510 IFD 440 IFD 410
FMS/GPS • • • • • •
VHF NAV • • •
VHF COM • • •
3D SVS • • • • • •
ARS + DYNAMIC SVS • •
WiFi/BT/FLTA • • • • • •
Radar Optional Optional Optional Optional From 5-series From 5-series
Video Optional Optional Optional Optional N/A N./A

Compatibility

Satellite Datalink Weather Interface

  • Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
  • GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver

Electronic Approach Charts & Airport Diagrams (IFD5XX Only)

  • CMax™ – Jeppesen Electronic Airway Manual Charts (IFD540 only)
  • European VFR (Bottlang) Charts - optional

Charts, Nav Data, and other software updates are easily field loadable via USB port.

Lightning Interface

  • Avidyne TWX670 Tactical Lightning Detection
  • L3 WX-500 Stormscope® Weather Mapping Sensor

Wx Radar Systems

  • Bendix/King RDR2000

Traffic Interface

  • Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
  • Ryan 9900B/BX TAS
  • Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
  • L3 Skywatch 497 / HP TAS/ 791 TCAS I
  • Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS

ADS-B Interface

  • Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
  • Avidyne SkyTrax100B
  • Avidyne AXP340, AXP322
  • L3 NGT-9000
  • FreeFlight RANGR
  • Garmin GTX330ES, GTX335, GTX345

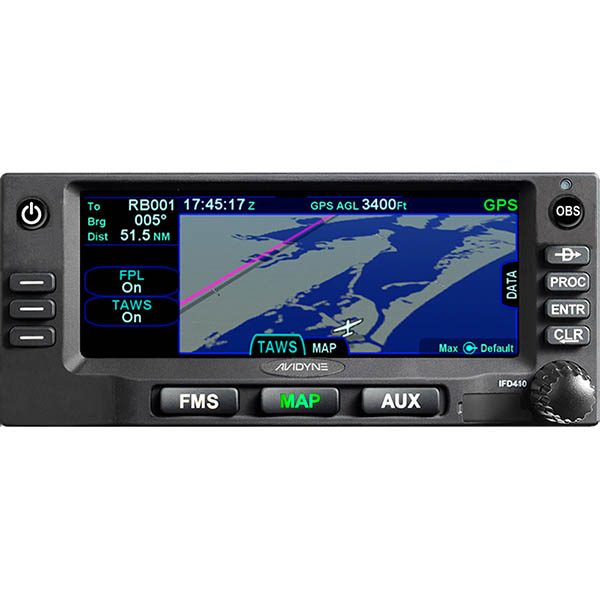

Terrain Awareness

  • Color-Contoured Terrain Base Map Built in
  • Americas Terrain & US Obstacle Data
  • International Terrain Data (optional)

406 ELT Interface

  • Aviation RS-232
  • NMEA 0183

Applicable TSOs

  • TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a

EFIS

  • Garmin G5
  • Garmin GI-275
