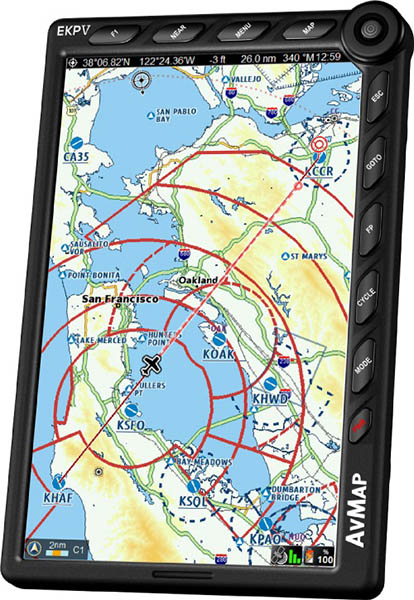

AvMap EKP V Handheld GPS - North America

$1996.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-09748
MFR Model# P1MK370AAM

Overview

AvMap presents EKP V the next step in the evolution of aeronautical GPS, redefining the role of the GPS inside the cockpit.

Fully Portable
A brilliant 7" display, with built-in battery and GPS, only 0.8" thick. EKP V is slim and light, yet very powerful: with built in u-blox 5 GPS receiver, built-in battery and speakers.

Offering full Connectivity
Thanks to the special Docking Station, you can connect EKP V to several on-board devices at the same time (autopilot, XM WX, CAS, EIS, EFIS etc.) so that the large 7" LCD becomes multifunctional and capable to display different flight info.

Fully Customizable
Easily change the layout choosing what to see and where to display it: maps, taws, weather, vertical profile on map, nav data, HSI, EFIS. Set different PROFILES for different aircrafts with different settings for taws, selective display and even different hard keys configurations.

User Friendly
The new practical keyboard includes a configurable key, a progressive joystick and a smart wheel selector. Ease of use is ensured by the new graphic interface and the full qwerty virtual keyboard.

The cartography for AvMap aeronautical products includes information from several sources:

  • Background and land elevation
  • Terrestrial data
  • Marine objects
  • Jeppesen data
  • Low Airways (Victor Airways)
  • Private airports
  • Vertical obstructions
  • VFR reporting points
  • And more!

Features

  • Fully Portable: A brilliant 7" display, with built-in battery and GPS, only 0.8" thick
  • Fully Customizable: Easily change the layout choosing what to see and where to display it: maps, taws, weather, vertical profile on map, nav data, HSI, EFIS
  • Full Connectivity: With the special docking station EKP V is capable to connect all your devices at the same time.
  • User Friendly: New intuitive interface Full QWERTY virtual keyboard Joystick + smart wheel

Specifications

  • Dimensions: 4.3" x 6.8" x 0.8"Weight: 14 Oz
  • Display Size: 7" (16:9)
  • Display Type: Color LCD TFT
  • Display Resolution: 800 x 480 pixels
  • Keyboard with 10 keys with F1 configurable key
  • Progressive Joystick + smart wheel selector
  • Ram: 256 MB
  • Speaker
  • Battery: removable, rechargeable lithium-Ion

Documents

  • Click here for product features
  • Click here for user manual

Reviews

I HAVE BEEN FLYING WITH THE AV MAP V FOR YEARS AND IT HAS NEVER LET ME DOWN ITS EASY TO USE AND VERY RELIABLE. I LIKE THAT WHEN YOU LAND IT SHOW THE RUN WAYS AND TAXI DIAGRAM . ITS A SIMPLE TO USE AND IT GIVES THE INFO. YOU NEED .

Mike S
August 3, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the Avmap EKP-V Americas have the Europe maps preinstalled?

No, you will have to buy the Euro data card 11-10078 extra to add Europe charts.

Q: How does the Avmap EKP V Handheld measure the speed? Does it have a pitot connection?

The Avmap EKP V handheld gets its speed by GPS. It does not have a pitot connection on its own but can be connected to a docking station that is connected to the pitot static system.

Q: Can the EKP V work with the new ADS-B system? This system in most cases requires WAAS capabilities.

No, as this is a portable GPS it would not be certified to be ADS-B out compliant.

Q: How do you update data on the Avmap EKP V GPS?

Avmap software updates are done online at avionics.avmap.it

Q: Does the Avmap EKP-V North America have South America maps preinstalled?

No, but they are available for purchase separately via the AvMap website.

Q: Does the AvMap EKP-V Americas have Canada map too?

Yes. The North America database will include Canada.

Q: Does the AvMap EKP V have Mexico coverage?

Yes Mexico is covered.

Q: How long will last the internal battery keep the charge?

You will have about 4 hours of battery life. However you can keep the unit on aircraft power.

Q: Will this AvMap EKP V system show ads-b traffic? I do understand this not a certified ads-b.

This is simply a GPS unit and requires a separate unit to produce ADSB.

Q: Will the AvMap EKP-V integrate with Trio AutoPilot?

Yes it will, through serial RS232 wire connection.
