AvMap EKP V GPS - Cockpit Docking Station
MFR Model# UX0DS100AM
Overview
|

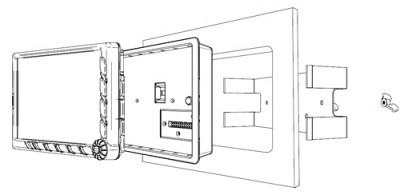

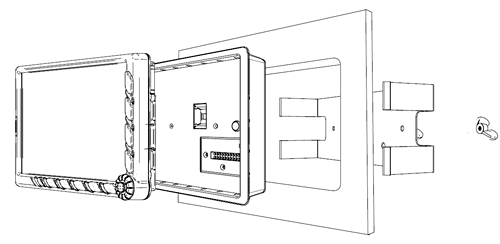

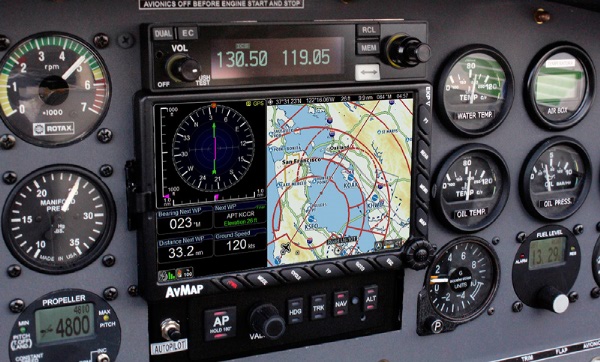

The Hub of your integrated avionic system: The EKP V Cockpit Docking Station allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit, and enables the unit to interface to multiple external devices at the same time. The Cockpit Docking Station is conceived to host the EKP V when used as part of the basic on board instrumentation, becoming the hub of your integrated avionic system. Multiple connections: The Docking Station transforms the EKP V large 7” LCD into a true multifunctional display and fight information system. When docked the EKP V is powered by the aircraft electrical system and it can connect to several on-board devices at the same time such as: AvMap’s IMU, third-party autopilots, XM WX, Zaon XRX. The CDS includes 4 USB ports, 2 serial ports, Audio video input (NTSC and PAL) , Audio output. The external GPS antenna is included in the box. Video on your EKP V: The Cockpit Docking Station includes a Audio video input (NTSC and PAL) that allows connecting the EKP V to video cameras with very useful applications for tail-draggers, or monitoring flights Safe connections: When docked, the EKP V is powered/charged by the aircraft electrical system (through a socket vibration proof for power supply AVG 16). One of the USB ports is powered by the EKP V internal battery to ensure functionality even in case of aircraft electrical power failure. DB 15 Connections: 4 x USB 2.0 ports (1 x battery powered by EKP V internal) 2x Serials ports (1 x RS-232, 1 x TTL levels) Audio IN Audio OUT Video IN (video composite signal PAL or NTSC) Push-To-Talk |
Documents
In The Box

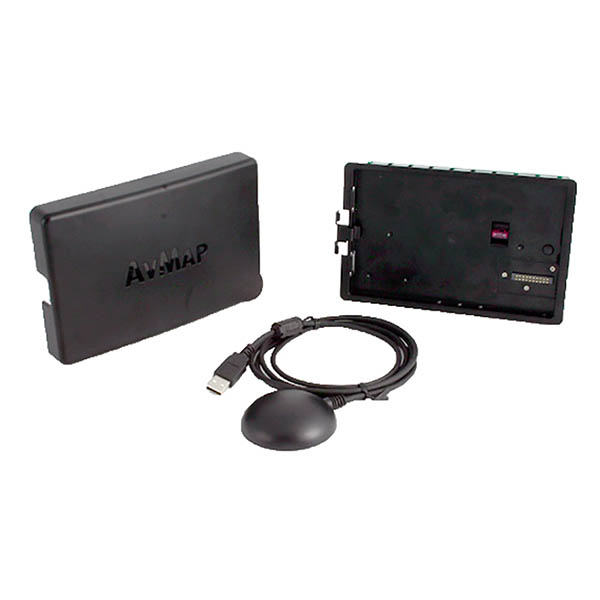

- The Docking Station package contains:
- EKP V Docking Station
- USB GPS antenna
- Flush Mount Kit
- Plastic Protective Cover
- Manual, screws and cutting template
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This does not include wiring. The AvMap EKP V GPS-Cockpit Docking Station includes: EKP V Docking Station, USB GPS Antenna, Flush Mount Kit, Plastic Protective Cover, Manual, Screws and Cutting Template.
The EKP V Cockpit Docking Station (CDS) allows the installation of AvMap EKP V Aeronautical Navigator into the cockpit, and enables the unit to interface to multiple external devices at the same time.
