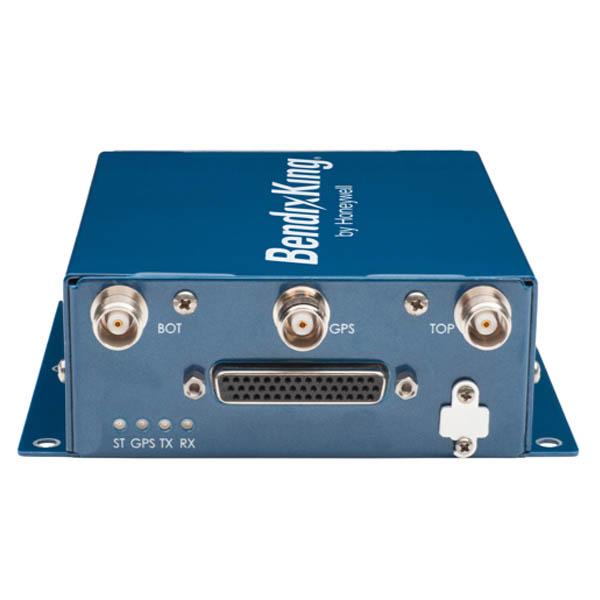

King KGX 150R ADS-B Uat Receiver With WAAS GPS

$16439.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-15381
MFR Model# 89000016-150

Overview

ADS-B Receiver with optional WIFI, best optimized for those who fly above and below 18,000 feet or want to replace their existing transponder with the KT 74 1090 extended squitter transponder. Also includes an integrated ADS-B OUT Compliant WAAS GPS. The KGX 15OR provides the ADS-B traffic and weather services to non-certified wireless tablet or certified compatible panel display. No external controller is needed.

Specifications

  • Size 5”W x 5.75” Dx 1.7” H
  • Less than 1 pound
  • Mode A/C and Mode S transponder interface
  • 2 ARINC 429; 1 RS 485 and 4 discrete inputs
  • 1 Arinc 429; 4 RS 232/422 and 2 discrete outputs
  • 10-40 VDC input voltage
  • .02 A @ 12 VDC Input Current
  • 6.5 VDC Output Voltage
  • 350 mA Output Current Certifications:
  • TSO-C157A (FISB)
  • TSO-C195A (TIS-B)
  • TSO-C154C (UAT) TSO-C145C (for GNSS)
  • DO-160G DO-178B level C DO-254 Level C STC Approved in accordance with AC20-165A

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the KGX150R be used as a replacement for an existing non- ads-b transponder?

This unit is only intended as an ADS-B in receiver, it would not replace an ADS-B transponder. See part number 11-15380 for a bendix/king ADS-B in/out solution.

Q: Does the KGX150R come with the wifi box? p/n89000016-002 and the install kit -017? Also does the 150R come with an install kit. So 2 install kits, the 150R and the WIFI box.

It comes with the install kit for the KGX150R. The wifi module and install kit are a separate option that is not included with part # 11-15381.

Q: Which transponders are approved to be used with the KGX150 and KGX130?

The KT74 is approved to be used with this.
