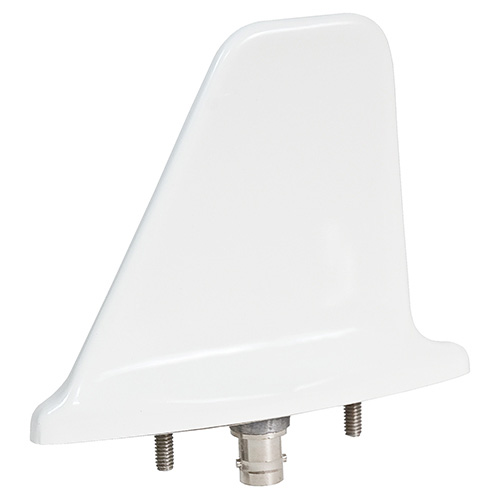

Comant DME / Transponder Antenna CI-105 FAA-TSO

17 Reviews 19 Answered Questions
$228.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17965
MFR Model# CI-105

Overview

Broadband and rugged antenna designed for DME or transponder use. Antenna assembly encased in a glass reinforced polyester molded shell. Standard two stud mounting configuration.

Specifications

MODEL CI 105 DME / TRANSPONDER
Electrical
Frequency
960 to 1220 MHz

VSWR
1.5:1 960 to 1220 MHz
1.3:1 1030 to 1090 MHz
Polarization
Vertical
Radiation Pattern
Equivalent to 1/4 wave stub
Impedance RF
50 Ohms
Resistance DC
Open Circuit
PowerRF
2.5 KW Peak
Mechanical
Weight

0.24 lb. Maximum
Height
3.23 in. Maximum
Material
Molded Radome
Finish
Polyurethane Enamel
Environmental
Temperature
-54ºC to +55ºC
Altitude
70,000 ft.
Air Speed
400 Knots TAS at 25,000 ft.
Federal Specification
RTCA Environmental
DO-160C
FAA TSO
C66a, C74c
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Excellent product and service

Barry J Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
November 21, 2024

Excellent product and service

Barry J Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
November 21, 2024

Shipped quickly.

Steven S Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
April 30, 2024

Was easy to install, worked as expected.

Philip S Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
October 13, 2023

D. H Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
December 13, 2022

I purchased this to use on an experimental after installing a GTX-327 and not realizing that the original monopole antenna was not compatible with the 327. This one had the quickest shipping of all blade antennas on aircraft spruce. red tail or E05 would have worked fine otherwise. This antenna passed the transponder test on the first attempt.

Frank J Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
October 7, 2022

good deal

Karl R Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
April 12, 2022

Quality product at a fair price.

William J Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
March 19, 2022

Robert P Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
November 17, 2021

Was wanting to purchase Comants Experimental version of this Transponder Antenna but there was a long waiting time so I opted for this more expensive certified model. At $160 think it’s bloody mean of Comant to NOT include the washers and nuts for installation.

Gr M Verified Purchase

Comant CI-105 Dme Transponder Antenna BNC
June 23, 2021

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the Comant DME/Transponder CI-105 work with the Becker mode C transponder?

Yes the CI-105 is a standard transponder antenna and can be used for both mode C & S transponders.

Q: Is the connector on the antenna a female BNC connector?

Yes, it is a female BNC. You will need to order a male BNC based on what type of coax cable you use (either RG 142 or RG 58).

Q: What is the minimum recommended separation distance between the two aerials.

Typically 3 feet is a good distance between antennas.

Q: Do you need a ground plate for this Comant CI-105 antenna? Which size?

Yes all antennas need a ground plate. Normally the height of the antenna should be the diameter of the ground plate but larger is better.

Q: Will this antenna work with a Trig TT22, and do I need to make a ground plane or can I buy one? Is all the mounting hardware included?

Yes, this antenna is compatible with all aviation transponders. The ground plane can be as simple as foil tape part number 11-12900. Hardware not included, only gasket.

Q: I am installing a Garmin GDL-88D with diversity, meaning it uses 2 antennas, one on the bottom of the fuselage and one on the top. Is this Comant CI-105 antenna approved and suitable for use on the top of the fuselage?

No. This antenna is meant for use on the bottom of the fuselage only.

Q: Can this antenna (CI 105) P/N 11-17965 be used with GTX345 transponder? Also, I do not see the required gasket P/N?

Yes, this unit can be used with all transponders and is approved by Garmin for usage with the GTX345. It includes the required gasket.

Q: According to the GDL-82 installation manual, this antenna is approved, but not recommended for new installations. If I have this antenna on my AC, do I have to replace it to install a new GDL-82?

No, you do not need to replace it. This statement is more for builders who currently do not have an antenna.

Q: Will the Comant DME/Transponder CI-105 work with the Garmin 23 ES Transponder?

Yes, part # 11-17965 will work with the Garmin 230 ES.

Q: Will this work with ADS-B in/out? Comant seems to recommend the CI 105-17-L. But Garmin does not list. Im using GTX-345 R WAAS on GTN 750.

Yes, this will work for your GTX 345 per the manual.
