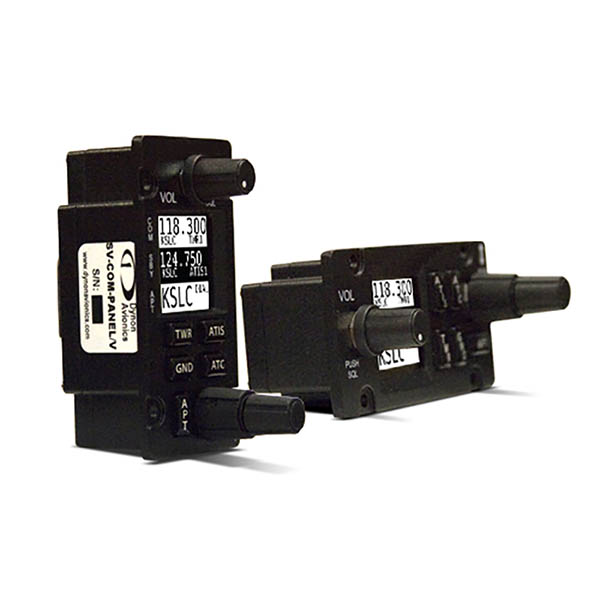

Dynon SV-Com-X83 Transceiver 102309-000
$2090.00/Each
Price Includes GST
Part# 10-07446
MFR Model# 102309-000
MFR Model# 102309-000
Overview
| By integrating deeply with your Dynon SkyView system, the SkyView COM Radio tunes frequencies by airport and station type - rather than by spinning in a number - at the touch of a button. You can also send frequencies over from the SkyView map airport info pages. For when you're feeling nostalgic (or are following ATC instructions), a dual concentric knob lets you spin in frequencies "the old fashioned way." SkyView will identify the airport and station type as you tune to help ensure you're talking to the right radio station. The SV-COM-X83 adds 8.33 kHz channel spacing. |
Features
- Tune frequencies by airport and station type at the touch of a button
- Send frequencies directly from SkyView
- GPS-based reverse lookup of airport and station type for manually entered frequencies
- Vertical and horizontal versions
- Monitor your standby frequency with dual watch
- Fully backlit, auto-dimming controls
- One-touch flip-flop with remote trigger ability
- Transmit indicator
- Receive indicator with active/standby differentiation
- Stuck mic indicator with transmit time-out
Specifications
- Frequencies:
- SV-COM-X83: 118.000 MHz to 136.992 MHz, 8.33 kHz Spacing
- Control Panels Dimensions:
- 3.53" (89.7mm) x 1.80" (45.7mm) x 1.27" (32.4mm), available in vertical and horizontal versions
- Transceiver Module Dimensions:
- 6.3” (160mm)L x 2.5” (66mm)W x 1.9” (48mm)H
- Weights:
- SV-COM-PANEL Control Panel: 5.6 oz (159 g)
- SV-COM-X83 Transceiver Module: 0.77lbs (350 g)
- Power Input:
- 10-30 VDC
- Transmit Power:
- 6 Watts
- Antenna Connection:
- TNC
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Can this Dynon SV-Com-X83 Transceiver 102309-000 be installed as an independent radio?
No, this cannot be installed as a stand alone system.
