EFB Caddy

0 Reviews 0 Answered Questions
From $210.95 to $224.95
Prices below incude GST
Main Image
Main Image
Main Image
Main Image
Description Part Number Price Buy

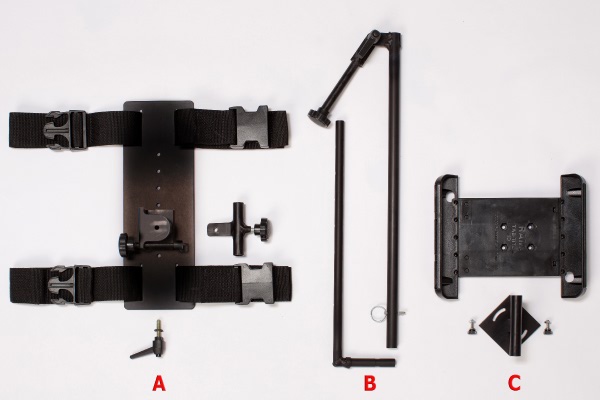

Model: A - Cradle / Size: Large
Height 8.25" to 11.25", Width 7.75" Max., Depth 0.56" Max.
11-14025
$247.45
Quantity
Model: B - Cradle / Size-Small
Height 8.25" to 11.25", Width 6.80" Max., Depth 0.50" Max.
11-14026
$247.45
Quantity
Model: C - No Cradle
11-14027
$232.05
Quantity
Subtotal $0.00
Add to Wishlist

Overview

In a word it is all about "SAFETY"!

With the advent of Electronic Flight Bag(EFB) software, Tablet technology and ADS-B receivers, today’s GA pilot has access to reasonably priced, portable technology that greatly improves the safety conditions, under which they can now operate.

Enhanced situational awareness and reduced pilot workload, both preflight and in-flight, are but two of the several benefits.

EFB CADDY was designed to further improve the pilot experience, by addressing the deficiencies found in many of the current Tablet holder products.
Secure physical attachment and head-up, unobstructed panel and outside view are critical features.

Features

  • Head-up Display
  • No Fuselage Modifications
  • Three Axis Adjustable
  • Adaptable to Aircraft/Pilot
  • Flexible Positioning
  • Quick Release Tablet Holder
  • Light Weight Anodized Aluminum
  • Accepts cradle with AMPS hole pattern
  • Unobstructed Entry/Exit
  • Quick Release Re-positioning
  • Position
  • Unobstructed Panel or Outside View
  • Enhanced Situational Awareness
  • Adjustment for Optimal Positioning
  • Position Safety Stops

Specifications

  • Weight: 40 oz
  • Arm Extension (Horizontal): 19-¼” to 28-¼”
  • Arm Movement (Vertical): 4” range
  • Seat Plate Straps (Quick Disconnect): 2” web x 64” useful length
  • Structural Material: Anodized Aluminum
  • Tablet Cradle Material (spring loaded): Composite Plastic
  • Accepts Any Cradle With The AMPS Hole Pattern

Dimentions

The cradle is compatible with any Tablet that will fit the dimensions listed. The Model "C" EFB Caddy is for users who currently own a tablet cradle or chose to purchase a cradle. The EFB Caddy is compatible with any cradle with the AMPS hole pattern.

  • Cradle A: Height 8.25" to 11.25", Width 7.75" Max., Depth 0.56" Max.
  • Cradle B: Height 8.25" to 11.25", Width 6.80" Max., Depth 0.50" Max.
