Overview

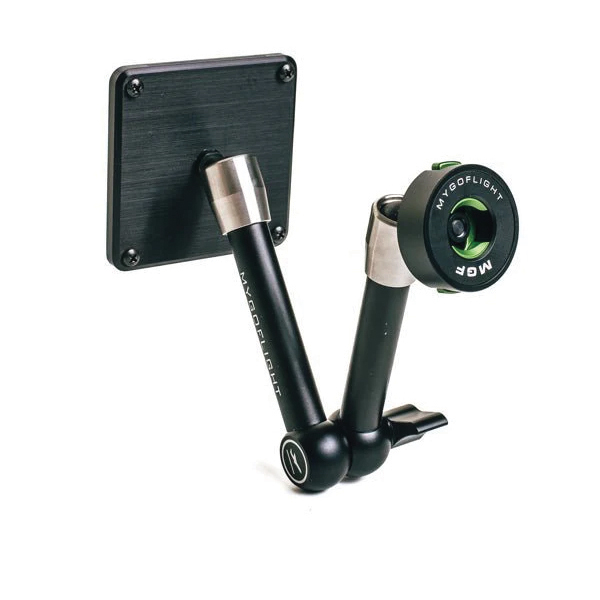

The Sport™ Mount - Flex Panel - an INFINITELY articulating and adjustable arm. There is no other panel mount for a device that does all that this unit does in a single, light-weight, easy to configure mount. Sport Mount - Flex Panel is the perfect mounting solution for pilots that would like to install a iPad/Tablet directly into their panel, such as in many experimental aircraft. The Panel base has the same hole pattern as existing instrument gear, so installation is a breeze, requiring no power tools. This is a perfect mounting solution in cockpits where space is tight. NOTE: You must have a Device Holder to use this mount

Features

• Sport Mount - Flex Panel can be installed by any pilot onto the panel of their aircraft
• Flex Panel can be installed into an existing panel instrument slot without having to cut any holes
• Ball and socket ends and a ratcheting center provide infinite adjustment to height and position
• Rotate device between landscape and portrait positions in-flight when mounted

Specifications

• Material - Alloy

Position

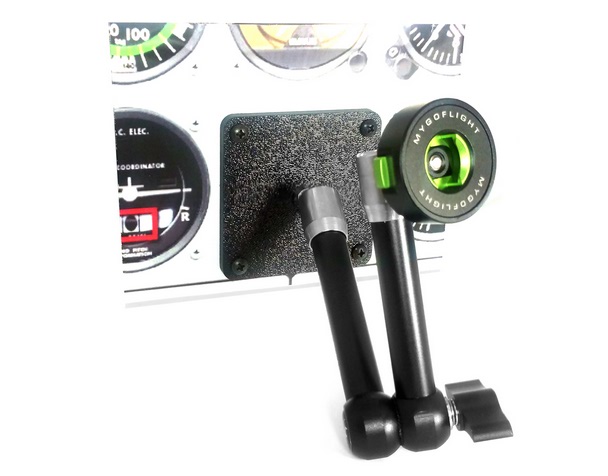

• Secure the panel mount into the panel using the provided screws (Fits standard hole pattern for panel instrument - 2.5" by 2.5")
• Attach the Device Holder (Sold Separately) to the Sport Adapter
• Loosen the control knob, position the iPad/Device
• Fine tune iPad/Tablet positioning, tighten control knob

Construction

• The arm is comprised of three independent joints, all adjustable and lockable from a single, centrally located control knob
• The center joint is adjustable to 360° and the two end joints are mini ball heads that are adjustable to 105°
• The control knob allows partial loosening for safe and precise device positioning
• No longer limited to fixed length, limited rotation RAM arms

In The Box

• Panel Base with 4 screws
• Flex Arm (Max. Extension - 10.5"
• Min. Extension - 3.25")
• Generation 3 Sport Adapter
