Electrical Terminal Nipples

Select Size:
1234
Select Color:
Red (C)Black (A)White (E)
Price Includes GST
Quantity
Add to Wishlist

Overview

Right angle nipples made of silicone rubber
MIL-R-5847, Class II, Grade 50. A-A-59178B

Specifications

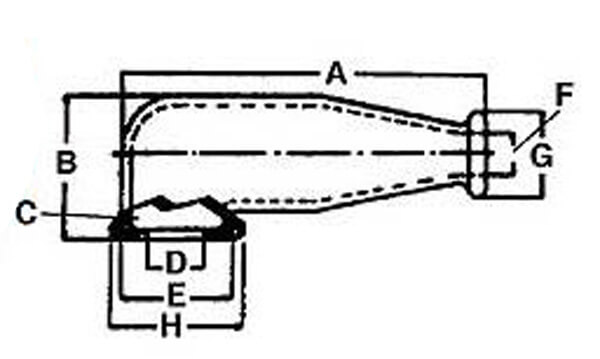

A-A-59178B A B C D E F G H
Dash No. Max. ±.125 ±.005 Dia. Dia. Dia. Dia. Dia.
-1 1.38" 0.56" 0.06" 0.4" 0.63" 0.16" 0.41" 0.76"
-2 2.5" 1" 0.06" 0.56" 0.82" 0.31" 0.56" 0.95"
-3 2.5" 1" 0.06" 0.56" 0.82" 0.43" 0.68" 0.95"
-4 2.5" 1" 0.06" 0.56" 0.82" 0.56" 0.82" 0.95"
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

these nipples are age old,serve a practical purpose.

Horst W Verified Purchase

Silicon Nipple MS25171-2S Red

November 9, 2024

Horst W Verified Purchase

Silicon Nipple MS25171-2S Blk

November 9, 2024

Great quality

Wyoming B Verified Purchase

Silicon Nipple MS25171-2S Red

November 2, 2024

Paul F Verified Purchase

Silicon Nipple MS25171-4S Wht

August 22, 2024

Paul F Verified Purchase

Silicon Nipple MS25171-3S Wht

August 22, 2024

Paul F Verified Purchase

Silicone Nipple MS25171-1S Red

August 22, 2024

Excellent for marine generators

Gary A Verified Purchase

Silicon Nipple MS25171-3S Blk

April 4, 2024

Great product.

Steiner G Verified Purchase

Silicone Nipple MS25171-1S Red

March 26, 2024

Great product.

Steiner G Verified Purchase

Silicon Nipple MS25171-2S Wht

March 26, 2024

fit well

Daniel J Verified Purchase

Silicon Nipple MS25171-2S Wht

March 19, 2024

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these widths in inches or cm?

The dimensions listed are in inches.

Q: Any temperature specification? How do they perform inside an engine cowling?

The temp range is from -85 to 4010F, and these are commonly used on engine components.
