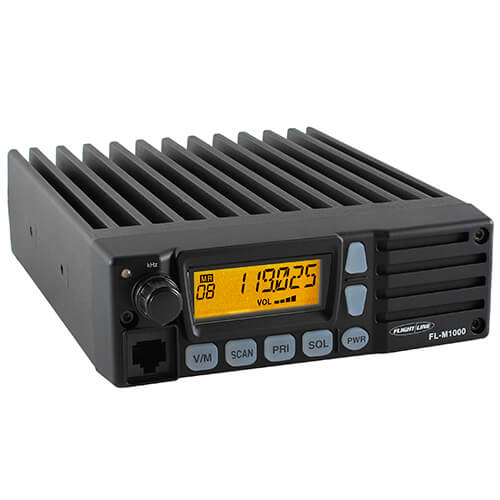

Flightline Fl-M1000A Air Band Radio
MFR Model# FL-M1000A
Overview
|
The FL-M1000A is an Air Band Land Mobile Radio designed for ground to air communications from land vehicles or base station use, not for aircraft. The radio can be operated with Hand microphone or headset. Users can choose audio output from external speaker or headphone. The radio has various built-in Scan functions. Note: This does not include an antenna. |
Features
- Installs in any vehicle
- Easy to read alpha/numeric display
- Scanning
- Usable in the 760 Channel VFO mode
- Simple to program
- Compatible with a standard Push-to-Talk Switch and Air Band Headset
- Priority scanning
- Multiple speakers, antennas, cables and programming options
- Front panel control of external speaker
- Hand Mic included
Specifications
- Weight: 4 lb
- Dimensions: 5.9 x 7.5 x 2 in
- Frequency Range: 118.0 MHz – 136.975 MHz
- Output Power: 9.44 watts
- Channel Spacing: 25kHz
- Mode: 6K00A3E
- Number of Memory Channels: 99
- Antenna Connection: SO-239
- Power Supply Requirement: 13.8V – 26.4V
- Current Drain (at 13.75VDC): Transmitting: 6A / Receiving: 6A / Standby: 260mA
- Operating Temperature Range: -22ºF to 140ºF
- Frequency Stability: ±5 ppm
Reviews
Very happy with this radio, it does exactly what it says on the box…. 👍
Verified Purchase
Flightline Fl M1000A
Easy installation and works very well since 3 months. Never been so loud and clear for the other radio station. Ive connected 2 more speakers to the audio output without any problem. Im not sure if the mike connection will last for years of usage, its a telephone type connector.
So far so good. This is being used as a base station for operations and price and value are good. I would of liked to see more detail in the description or spec to determine the right adapters for hooking up to the ground power and antennae.
When i first got this radio it would let me use 8.33 spacing then in the last week all im able to do is use 25 kHz spacing. Dont know how that happened but flightline says they dont know how to remedy this so im buying an icom 120 which has both 8.33 and 25 spacing
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the Flightline FL-M1000A Air Band Radio supports only 25khz spacing.
No, this air band radio does not include the antenna.
The FL-M1000A is only available for DC power 14-28V.
This has 6 watts of output power. This is intended as a base station for use on airport land vehicles such as cars and trucks.
Per the supplier: Yes.
The antenna is a SO-239 connector that mates with a PL-259 connector.
Approx W. 150mm X D. 190mm X H. 50mm
If you are doing a base installation you can use P/N: 11-05996 AV-1 antenna or P/N: AV-5
The FL-M1000A is a good base station radio.
Per the manufacturer: There are many variables that impact the effective range,if its placed on the tall building with no obstructions it could be 50 miles plus.
