Home / Avionics / Base Stations /Flightline FL-M1000AB Base Station
Main Image

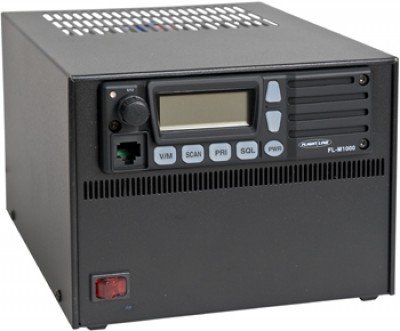

Flightline FL-M1000AB Base Station

2 Reviews 14 Answered Questions
$985.60/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-09190
MFR Model# FL-M1000AB

Overview

The FL-M1000A Air Band Land Radio is installed in an Astron Base Station. This air band land mobile radio is designed for land vehicles, or base station use, not for aircraft. The radio can be operated with handheld microphone or headset. Selectable audio output from external speaker and/or headphone.

Features

  • Convenient Base Station Enclosure
  • Easy to read alpha/numeric display
  • Scanning
  • Usable in the 760 Channel VFO mode
  • Simple to program
  • Compatible with a standard Push-to-Talk Switch and Air Band Headset
  • Priority scanning
  • Multiple speakers, antennas, cables and programming options
  • Front panel control of external speaker
  • Hand Mic included

Specifications

  • Frequency Range: 118.0 MHz – 136.975 MHz
  • Output Power: 9.44 watts
  • Channel Spacing: 25kHz
  • Mode: 6K00A3E
  • Number of Memory Channels: 99
  • Antenna Connection: SO-239
  • Power Supply Requirement: 13.8V – 26.4V
  • Current Drain (at 13.75VDC): Transmitting: 6A / Receiving: 6A / Standby: 260mA
  • Operating Temperature Range: -22ºF to 140ºF
  • Frequency Stability: ±5 ppm

Reviews

Submit a Review

Works as it should good volume and reception

Kenneth F Verified Purchase

Flightline Fl M1000Ab Base St
October 1, 2021

John C Verified Purchase

Flightline Fl M1000Ab Base St
July 15, 2021

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the output power on the FL M1000AB and what antenna do you recommend?

This is a 9W output power radio and we recommend the RA Miller AV-5 and AV-6 for antenna and cable.

Q: What is the input power requirement?

This plugs into an AC 110 volt plug.

Q: Is the Flightline FL-M1000AB Base Station capable of storing memory channels? Will it scan stored channels?

Per the manual, you can save memory channels and also scan through them.

Q: Does it include the mic shown in the picture?

Yes, the hand mic for the FL-M1000AB (11-09190) is included.

Q: What is the warranty period for the Flightline FL-M1000AB base station?

The FL-M1000AB base station comes with a 1 year warranty.

Q: Is this Flightline FL-M1000AB base station an 8.33Mhz capable radio?

No, the FlightLine units only ship with a Channel Spacing of 25kHz.

Q: Does the FLIGHTLINE FL-M1000AB BASE STATION come with an internal speaker? What antenna do you recommend and does it come with the hook up cable?

Yes, an internal speaker is included. The antenna is part number 11-18581 which includes the cable.

Q: What type of antenna connection is required to connect to the Flightline FL-M1000AB radio?

This unit uses an SO-239 or PL-259 antenna connector.

Q: Can this Flightline FL-M1000AB be plugged into 220V Power supply?

No, this unit can not be plugged into a 220V power supply.

Q: Does this unit have a built in speaker or will we need to add an external speaker?

Yes, this has an internal speaker.
