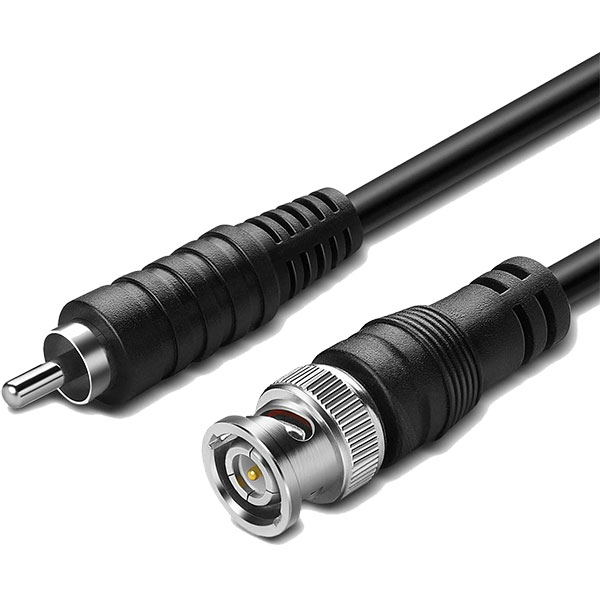

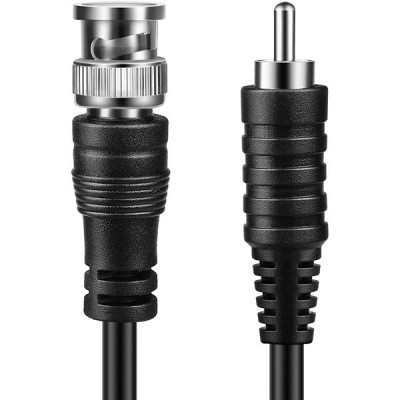

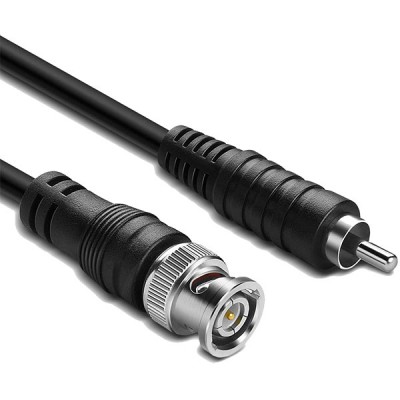

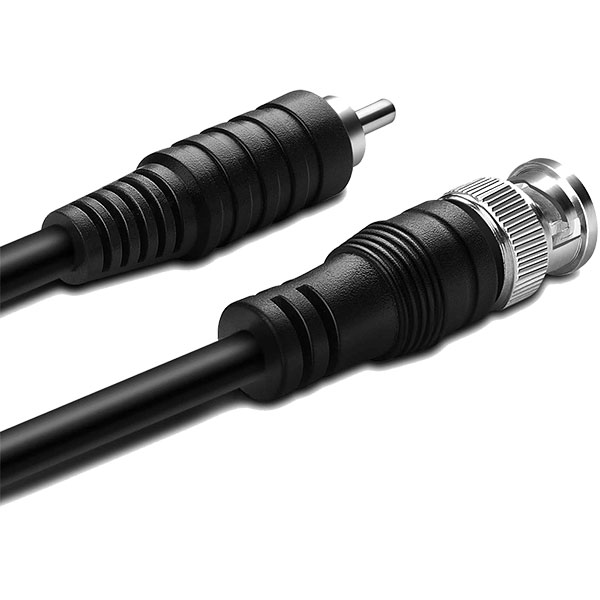

Garmin G3X Adapter - BNC To RCA 75 Ohm

$14.85/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17905
MFR Model# B06XW6KSH1

Overview

RG-59/U is a specific type of coaxial cable, often used for low-power video and RF signal connections. The cable has a characteristic impedance of 75 ohms, and a capacitance of around 20pF/ft (60pF/m). The 75 ohm impedance matches a dipole antenna in free space. RG (for radio guide) was originally a unit indicator for bulk radio frequency (RF) cable in the U.S. military's Joint Electronics Type Designation System.

RG-59 is often used at baseband video frequencies, such as composite video. It may also be used for broadcast frequencies, but its high-frequency losses are too high to allow its use over long distances; in these applications, RG-6 or RG-11 is used instead. In cases where the transmission distance is too long for these media, such options as UTP (unshielded twisted pair) or fiber optic can be used. RG-59 coaxial cable is commonly used with consumer equipment, such as VCRs or digital cable/satellite receivers.

Features

  • BNC Male to RCA Male Video Cable is an affordable coaxial cable that can be used to run a composite video signal between two compatible components
  • Perfect for displays that require a single BNC connection from a PAL / NTSC video sources, like a sequencer or CCTV video monitor. It features 75ohm RG59U Coax with 95% braid
  • Convert Back and Forth between BNC and RCA using the BNC RCA Cable
  • This coaxial cable can be used to run a composite video signal between two compatible components
  • RG59u / Impedance 75 Ohm coaxial; Perfect for displays that require a single BNC connection from a PAL / NTSC video sources, like a sequencer or CCTV video monitor

Specifications

  • BNC to RCA Video Cable
  • BNC Male to RCA Male
  • Cable Length: 6 Feet
  • Impedance: RG59u 75 Ohm
  • Connectors: BNC Male to RCA Male

In The Box

  • 1x BNC to RCA Adapter Cable (6FT) - BNC Male To RCA Male RG59U Coaxial Composite Video Connector Jack Converter Adaptor Composite Video Cable
