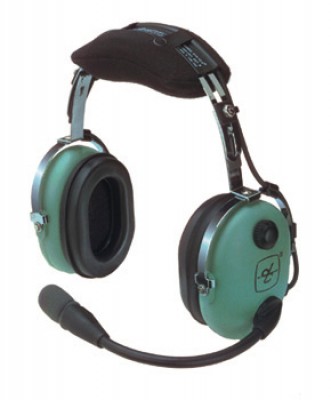

David Clark H10-13Y Youth Headset
MFR Model# 40411G-04
Overview
|
The H10-13Y (Youth) Headset is a small version of the H10-13.4 headset. The H10-13Y headset provides David Clark quality without the hot spots, clamping, or weight discomfort. It features a certified noise reduction rating of 23 dB and weighs only 16.5 oz. It features M-7A noise cancelling electret mic, and low profile volume controls with detent settings. This headset is upgradeable to the full sized version when needed. The Super-Soft, Double-Foam Headpad will improve the comfort and “wearability” of all H10-series headsets. It is wider and more tapered with 60% more surface area in contact with the head to dissipate headset weight. Its unique center “hinge” actually lets the headpad “breathe” for greater comfort. It also eliminates irritation while wearing button-top baseball caps. The new Comfort-Gel Ear Seals have a patented undercut design and are 26% lighter and allow 30% more interior room for your ears, making for a quieter, more comfortable flight. |
Features
- Earphone Type: Dynamic
- Earphone Impedance: 150 ohms(300 each; wired in parallel)
- Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz
- Earphone Frequency Response: 200-5,500 Hz
- Earphone Plug: PJ-055 (.25" phone plug)
- Boom Type: Universal Flex
- Headpad/Hardware: Super-Soft, Double-Foam Headpad,Lightweight Hardware
- Noise-Canceling Mic: M-7A Amplified Electret
- Mic Impedance: 50 ohms +/- 20%
- Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
- Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
- Mic Plug: PJ-068 (.206" phone plug)
- Cord: 5 ft.Straight
- Weight/Headset Only: 16.5 oz.
Reviews
My wife has a small head and these fit her perfectly. Her voice comes through nicely and she reports good noise cancellation. Good price too for new headphones, thanks.
Verified Purchase
David Clark H10-13Y Youth Headset Dual Plugs Mono H10
Head set is what i expected and right on time to make our flight with my grandson.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this headset is sized for kids from roughly 9-14 years old. As users grow, the headband can be replaced to upgrade the headset to the standard H10-13.4 model. The upgrade kit is available under part # 11-11950.
